    The VT-80 is recommended for PV capacities up to 5kWp, and charges the battery with a maximum current of 80A.

    The battery management parameters can be adjusted on the inside of the device. On the outside, an LED display indicates the battery charge current and state of the VT-80.

    Given the specific system needs, several accessories can be added such as the Remote Control and Programming Centre RCC-02/03, a module with 2 auxiliary contacts ARM-02, a battery temperature sensor BTS-01, a battery status processor BSP-500/1200, or one of the communication sets Xcom-LAN/GSM/SMS.

    The VT-80 has a remote entry which provides the option to control the system from several parameters that can be programmed with the RCC-02/03.

    The combination of the VT-80 and Xtender series is the ideal solution for hybrid systems with several power sources such as solar PV, genset, etc.

    Specification

    Product No. R1040
    Model VT-80
    Electrical characteristics PV array side
    At nominal battery voltage 12V / 24V / 48V
    Maximum solar power recommended (@STC) 1250W @12V / 2500W @ 24V/ 5000W @48V
    Maximum solar open circuit voltage 80V @12V battery voltage / 150V @24V&48V battery voltage
    Maximum solar functional circuit voltage 75V @12V battery voltage / 145V @24V&48V battery voltage
    Minimum solar functional circuit voltage Above battery voltage
    Electrical characteristics battery side
    Maximum output current 80A
    Nominal battery voltages Automatic / manual set to 12, 24 or 48V
    Operating voltage range 7 - 68V
    Performances of the device
    Power conversion efficiency (in a 48V typical-system) >99%
    Maximum stand-by self-consumption (48V) 25mA > 1.2W
    Maximum stand-by self-consumption (24V) 30mA > 0.8W
    Maximum stand-by self-consumption (12V) 35mA > 0.5W
    Charging stages 4 stages: Bulk, Absorption, Float, Equalization
    Battery temperature compensation (available with accessory BTS-01) -3mV/°C/cell (25°C ref) default value adjustable -8 to 0 mV/°C
    Electronic protections
    PV reverse polarity Up to -150V
    Battery reverse polarity Up to -150V
    Battery overvoltage Up to 150V
    Over temperature protected
    Reverse current at night prevented by relays
    Environment
    Operating ambient temperature range -20 to 55°C
    Humidity 100%
    Ingress protection of enclosures IP54, IEC/EN 60529:2001
    Mounting location indoor
    General data
    Warranty 5 years
    ISO Certification 9001:2008 / 14001:2004
    Weight 5.5kg
    Dimensions h/w/l (mm) 120 / 220 / 350
    Parrallel operation (separated PV arrays) up to 15 devices
    Max wire size 35 mm2
    Glands M 20 x 1.5
    Communication
    Networking cabling Studer communication BUS
    Remote control & Communication RCC-02/03, Xcom-232i / Xcom-LAN / Xcom-GSM / Xcom-SMS
    Menu languages English / French / German / Spanish
    Data logging With RCC -02/03, Xcom-232i on SD card - One point every minute
    Accordance to standards
    EU declaration of conformity Low Voltage Directive (LVD) 2014/35/EU: -EN 50178:1997
    Electromagnetic Compliance (EMC) Directive 2014/30/EU: -EN 61000-6-2:2005, -EN 61000-6-4:2007/A1:2011
    Accessories
    Remote control RCC-02 or RCC-03 +
    Module Xcom-232i +
    Communication sets Xcom-LAN / Xcom-GSM / Xcom-SMS +
    Battery Status Processor BSP +
    2 aux. contacts module ARM-02 +
    Cooling Module ECF-01 +
    Battery temp. sensor BTS-01 (3m) +
    Communication cable CAB-RJ45-8-2 +

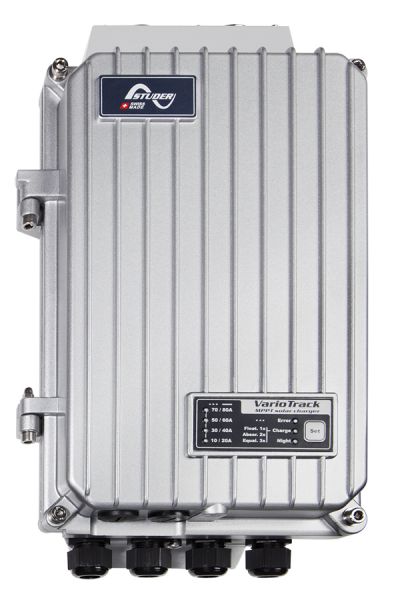

  • Product image

    VarioTrack 80
    VarioTrack 80

    Download

    Studer - VarioTrack series.pdf (129.5 KiB)
