Products Charge Controllers VarioString 120
  • Description

    The VS-120 is recommended for PV capacities up to 7kWp, and charges the battery with a maximum current of 120A. Its two MPPT inputs offer very flexible connections of the PV modules. The inputs can be connected in parallel, in series or independently. With the inputs connected in series, the string of PV modules can have a voltage up to 900V, all this without special tools and with reusable connectors.

    The battery management parameters can be adjusted on the inside of the device. On the outside, an LED display indicates the battery charge current and state of the VS-120.

    Given the specific system needs, several accessories can be added such as the Remote Control and Programming Centre RCC-02/03, a module with 2 auxiliary contacts ARM-02, a battery temperature sensor BTS-01, a battery status processor BSP-500/1200, or one of the communication sets Xcom-LAN/GSM/SMS.

    The VS-120 has a remote entry which provides the option to control the system from several parameters that can be programmed with the RCC-02/03.

    The combination of the VS-120 and Xtender series is the ideal solution for hybrid systems with several power sources such as solar PV, genset, etc.

    Specification

    Product No.         R1040
    Model       VS-120
    Electrical characteristics PV array side MPPT1 MPPT2 1+2 in parallel 1+2 in series
    Maximum solar power recommended (@STC) 3500W 3500W 7000W 7000W
    Maximum current 13A 13A 26A 13A
    Maximum solar open circuit voltage 600V 600V 600V 900V
    Minimum solar functional circuit voltage 200V 200V 200V 400V
    Recommended MPPT voltage 250-500V 250-500V 250-500V 500-750V
    Electrical characteristics battery side
    Maximum output current 60A 60A 120A 120A
    Nominal battery voltages       48V
    Operating voltage range       38 - 68V
    Battery grounding possibility       Battery + or battery -
    Performances of the device
    Maximum efficiency       >98%
    MPPT efficiency       >99.8%
    Maximum stand-by self-consumption (48V)       1.25W
    Charging stages       4 stages: Bulk, Absorption, Float, Equalization
    Battery temperature compensation (available with accessory BTS-01)       -3mV/°C/cell (25°C ref) default value adjustable -8 to 0 mV/°C
    Electronic protections
    PV reverse polarity       + +
    Battery overvoltage       Up to 80V
    Over temperature       +
    Reverse current at night       +
    Galvanic isolation       +
    PV grounding possibility       PV+, PV-, floating
    GroundFaultProtection       Programmable
    Environment
    Operating ambient temperature range       -20 to 55°C
    Humidity       maximum 95%, non-condensing
    Ingress protection of enclosures       IP20
    Mounting location       indoor
    General data
    Warranty       5 years
    ISO Certification       9001:2008 / 14001:2004
    Weight       7.5kg
    Dimensions h/w/l (mm)       133 / 322 / 466
    Solar generation connection (6mm2)       SUNCLIX (Phoenix Contact Tool Free)
    Parrallel operation (separated PV arrays)       up to 15 devices
    Max wire size       70 mm2
    Glands       M 20 x 1.5
    Communication
    Networking cabling       Studer communication BUS
    Remote control & Communication       RCC-02/03, Xcom-232i / Xcom-LAN / Xcom-GSM / Xcom-SMS
    Menu languages       English / French / German / Spanish
    Data logging       With RCC -02/03, Xcom-232i on SD card - One point every minute
    Accordance to standards
    CE compliant       EMC 2004/108/EC - LV 2006/95/EC - RoHS 2011/65/EU
    Safety       IEC/EN 62109-1:2010
    EMC (Electro Magnetic Compatibility)       IEC/EN 61000-6-3:2011 - IEC/EN 61000-6-1:2005
    Accessories
    Remote control RCC-02 or RCC-03       +
    Module Xcom-232i       +
    Communication sets Xcom-LAN / Xcom-GSM / Xcom-SMS       +
    Battery Status Processor BSP       +
    2 aux. contacts module ARM-02       +
    Battery temp. sensor BTS-01 (3m)       +
    Communication cable CAB-RJ45-8-2       +

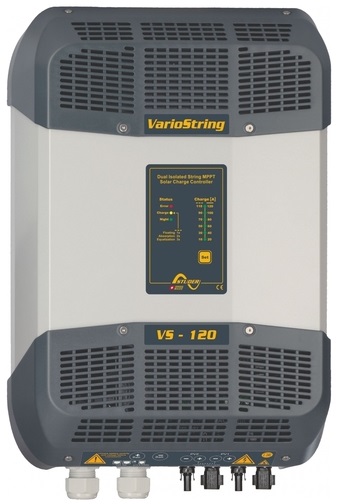

  • Product image

    VarioString 120
    VarioString 120

    Download

    Studer - VarioString series.pdf (122.6 KiB)
