Description
The new design for the Steca Tarom sets new standards in this power class. A graphic display informs the user about all important system data and enables configuration and adjustment of the controller to the specific requirements of the individual system.
Numerous clever functions allow the user to adjust the controller to the particular features of the system in question. Thanks to the significantly improved state of charge determination, the system is optimally controlled and the batteries are protected. The Steca Tarom charge controller is the ideal choice for larger systems at three voltage levels (12 V, 24 V, 48 V).
The integrated data logger stores all important system data. Controller data can be read by the minute via an open Steca UART interface. As an option, an external temperature sensor can also be connected.
Two additional switching contacts can be freely configured as a timer, a night light function, to start generators or as surplus management. Up to six devices can be connected in parallel and communicate with one another via the StecaLink bus.Specification
Product No. R1044 Characterisation of the operating performance: System voltage 12 V / 24 V / 48 V Own consumption 30 mA DC input side: Open circuit voltage solar module < 100 V Module current 45 A DC output side: Load current 45 A Reconnection voltage (SOC / LVR) > 50 % / 50 V Deep discharge protection < 30 % (SOC / LVD) < 30 % / 46.8 V Battery side: End of charge voltage 56.4 V Boost charge voltage 57.6 V Equalisation charge 60 V Set battery type liquid (adjustable via menu) Operating conditions: Ambient temperature -10 °C … +60 °C Fitting and construction: Terminal (fine / single wire) 25 mm² / 35 mm² - AWG 4 / 2 Degree of protection IP 31 Dimensions (X x Y x Z) 218 x 134 x 65 mm Weight 800 g Technical data at 25 °C / 77 °F
Inverters must not be connected to the load output.
-

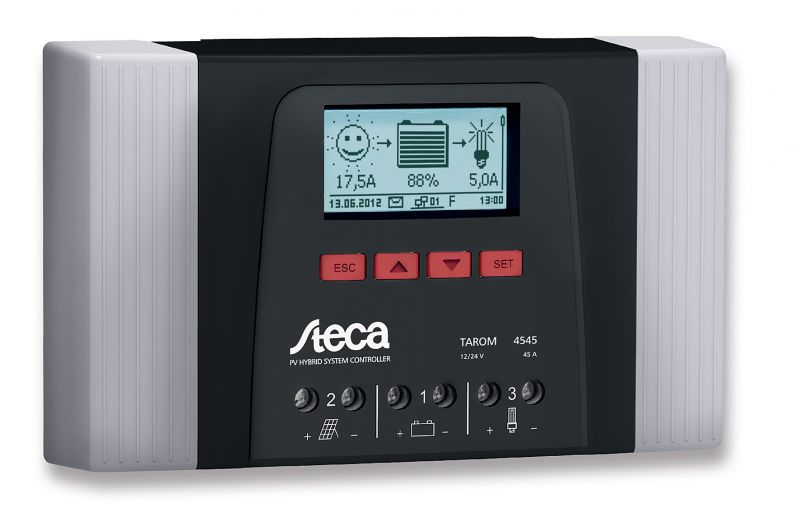

Product image
Tarom 4545-48 Download
