Description
The Steca Tarom is a solar charge controller specifically designed for use in telecommunications applications or in hybrid photovoltaic systems.
Numerous clever functions allow the user to adjust the controller to the particular features of the system in question. Thanks to the significantly improved state of charge determination, the system is optimally controlled and batteries are protected. The Steca Tarom charge controller is the best choice for system sizes of up to 2,400 Wp at three voltage levels (12 V, 24 V, 48 V).
There is the option of connecting additional devices such as a temperature sensor, a data logger and a remote control for configuring and monitoring the system. An integrated Ah meter also provides the user with information on the energy budget of the application.
Specification
Product No. R1007 Characterisation of the operating performance: System voltage 12 V (24 V) Own consumption 14 mA DC input side: Module current 35 A DC output side: Load current 35 A End of charge voltage 13.7 V (27.4 V) Boost charge voltage 14.4 V (28.8 V) Equalisation charge 14.7 V (29.4 V) Reconnection voltage (SOC / LVR) > 50 % / 12.6 V (25.2 V) Deep discharge protection (SOC / LVD) < 30 % / 11.1 V (22.2 V) Operating conditions: Ambient temperature -10 °C … +60 °C Fitting and construction: Terminal (fine / single wire) 16 mm² / 25 mm² - AWG 6 / 4 Degree of protection IP 32 Dimensions (X x Y x Z) 187 x 128 x 49 mm Weight 550 g Technical data at 25 °C / 77 °F
-

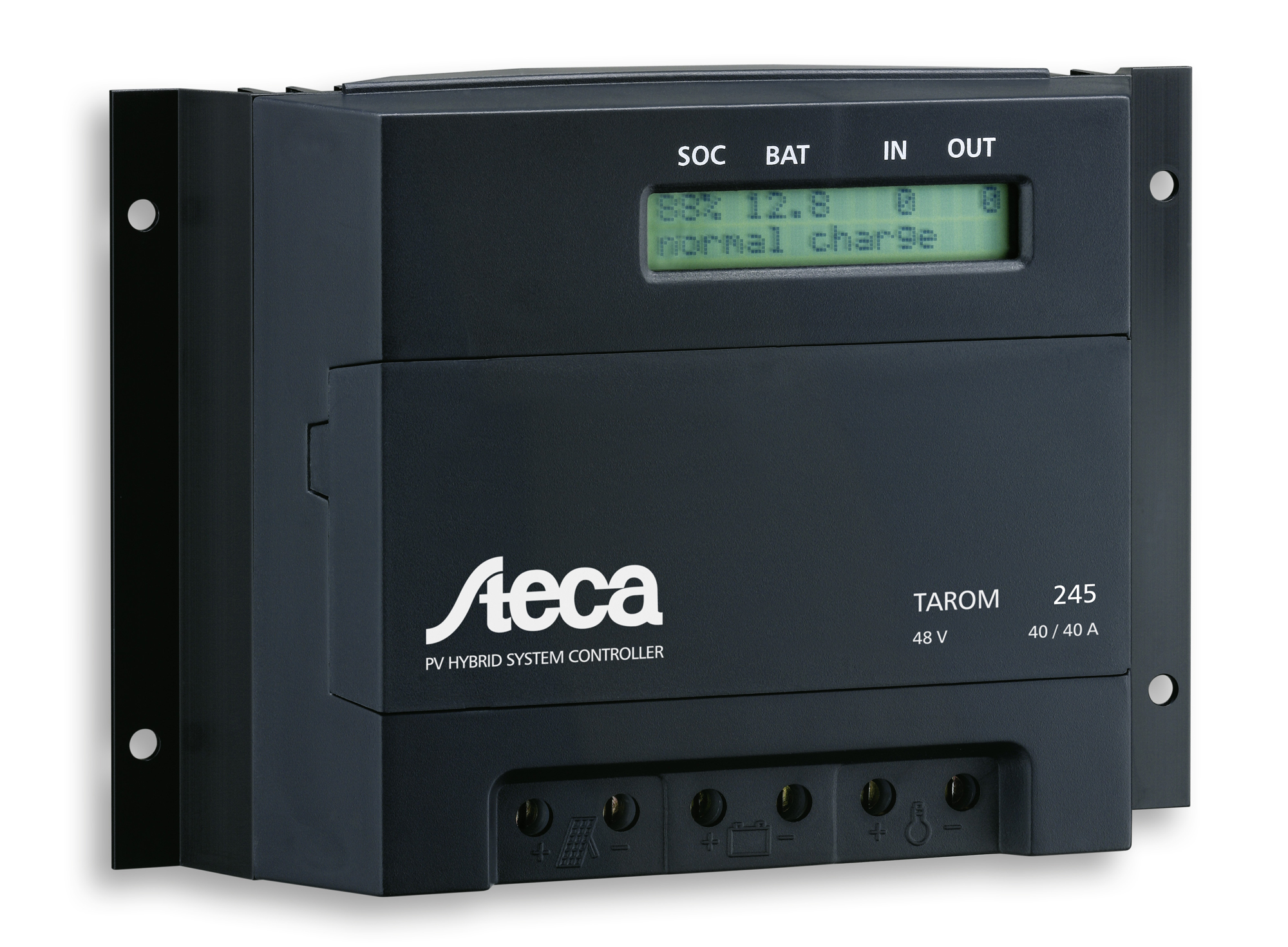

Product image
