Description
The solar charge controllers Steca Solarix 2401 and 4401 are optimally suited for inverter systems. The controller combines basic solar charger functions with a 40 A high-performance charge controller. It is available as 12 V / 24 V and 48 V system. This makes the solar charge controller very cost effective.
The load current is limited to 10 A. The charging processes are based on the voltage level, which can be individually set with the help of four buttons behind the front casing.
Specification
Product No. R1005 Characterisation of the operating performance: System voltage 12 V (24 V) Own consumption 14 mA DC input side: Module current 40 A DC output side: Load current 10 A End of charge voltage 13.7 V (27.4 V) Boost charge voltage 14.4 V (28.8 V) Equalisation charge 14.7 V (29.4 V) Reconnection voltage (LVR) 12.6 V (25.2 V) Deep discharge protection (LVD) 11.1 V (22.2 V) Operating conditions: Ambient temperature -10 °C … +60 °C Fitting and construction: Terminal (fine / single wire) 16 mm² / 25 mm² - AWG 6 / 4 Degree of protection IP 32 Dimensions (X x Y x Z) 187 x 128 x 49 mm Weight 550 g Technical data at 25 °C / 77 °F
-

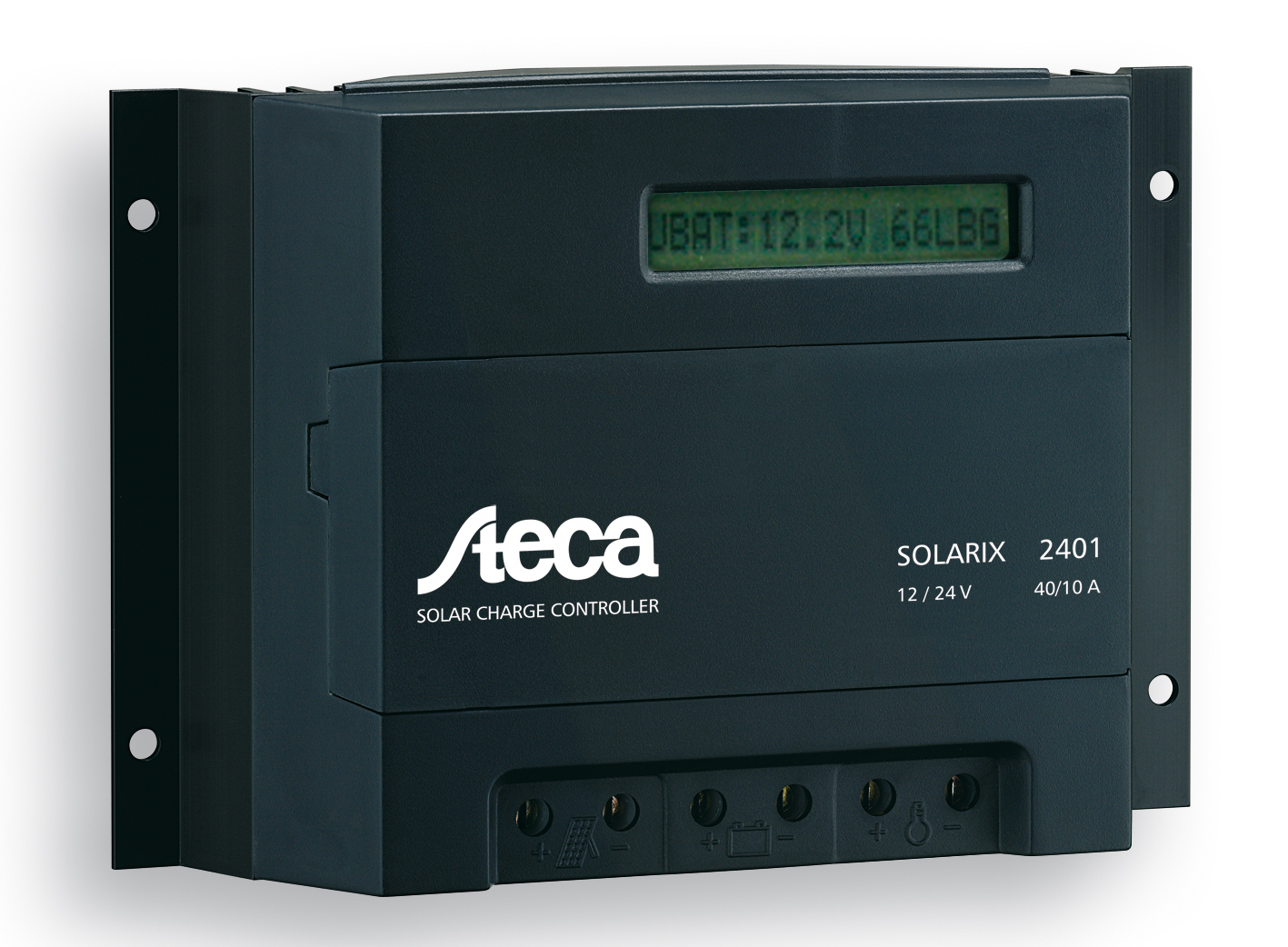

Product image
Solarix 2401 Download
