Description
The Steca Solarix 2020-x2 is a state-of-the-art dual battery charge controller that is ideal for use in leisure applications. It is equipped with a solar module input suitable for all 72-cell crystalline solar modules in 24 V systems and for all 36-cell solar modules in 12 V systems. Both main battery and starter battery are charged simultaneously and continuously by the solar module. 90 percent of the available power flows into the main battery while 10 percent of the power is retained to keep the auxiliary battery fully-charged.
The charge power split can be adapted using the Steca PA LCD1 remote display. The charge controller is equipped with a high-power load output fed by the main battery only. The charge controller has a USB charge socket, which can be used to charge smartphones and tablets. Connection of the Steca PA LCD1 remote display is optional.Specification
Product No. R1136 Characterisation of the operating performance: System voltage 12 V (24 V) Own consumption 22 mA DC input side: Open circuit voltage solar module < 60 V Module current 20 A DC output side: Load current 20 A USB charge socket 5 V / 1.5 V Reconnection voltage (LVR) 12.5 V Deep discharge protection (LVD) 11.7 V Battery side: End of charge voltage 14.1 V (28.2 V) Boost charge voltage 14.4 V (28.8 V) Equalisation charge 15 V (30 V) Set battery type gel Main / auxiliary battery charging ratio 90 % / 10 % Operating conditions: Ambient temperature -10 °C … +60 °C Fitting and construction: Terminal (fine / single wire) 6 mm² / 10 mm² - AWG 10 / 8 Degree of protection IP 31 Dimensions (X x Y x Z) 190 x 120 x 57 mm Weight 500 g Technical data at 25 °C / 77 °F
adjustable via Steca PA RC100: reconnection voltage, deep discharge protection, end of charge voltage, boost charge voltage, equalisation charge, battery type -

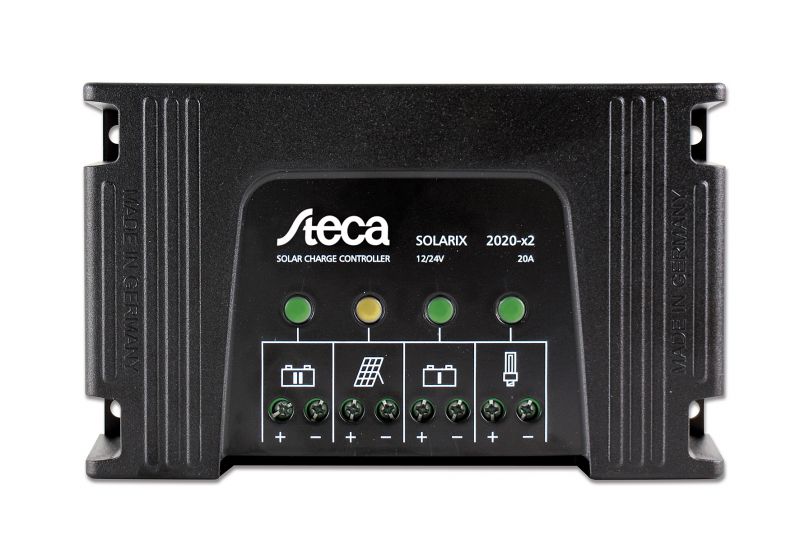

Product image
