Description
Analog Charge Controller
12/24V Volt system voltage
16 A module currentProtected against deep discharge and overload
Temperature compensation optional
IP65 protected (splash proof)Automatic overcharge protection using the shunt-switch principle
High efficient puls width modulation
Deep discharge and overload protected
Two years warrantySpecification
Product No. R1030 Technical Data: System voltage 12 V 24 V full charge voltage 14.1 V 28.2 V maximum solar generator power 260 W 520 W Load disconnect voltage 11.0 V 22.0 V Load reconnect voltage 12.5 V 25.0 V maximum input voltage 50 V maximum solar module current 16 A maximum load current 12 A internal blade fuse 15 A quiescent current (LED off) ≤ 3mA operating temperature range -15...50°C max. admissable humidity 75 % ingress protection of enclosure IP 65, splash proof case bottom (cover: clear plastic) aluminium case cover clear plastic cover terminals 10 mm² cable glands 1x PG9, 3x M25x1,5 overall dimensions 175 x 115 x 60mm weight incl. accessories 670g Technical data at 25 °C / 77 °F
-

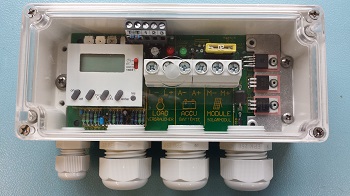

Product image
