Description
Analog Charge Controller
48 Volt system voltage
5/10A module and load current
3 LED displaysProtected against deep discharge and overload
Temperature compensation optional
IP65 protected (splash proof)Automatic overcharge protection using the shunt-switch principle
High efficient puls width modulation
Deep discharge and overload protected
Two years warrantySpecification
Product No. R1024 Technical Data: System voltage 48 V full charge voltage 56.4 V LED "Batt. empty" on 46.0 V LED “Batt. empty” off 52.0 V Load disconnect voltage 44.0 V Load reconnect voltage 50.0 V maximum input voltage 100 V maximum solar module current 10 A maximum load current 10 A quiescent current (LED off) # 2mA operating temperature range -15...50°C max. admissable humidity 75 % ingress protection of enclosure IP 65 case bottom (cover: clear plastic) aluminium connecting clamps 4mm² cable glands 1x PG9, 3x M25 overall dimensions 175 x 115 x 60mm weight incl. accessories 670g -

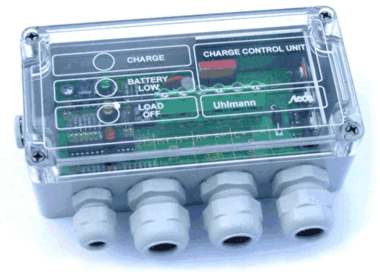

Product image
