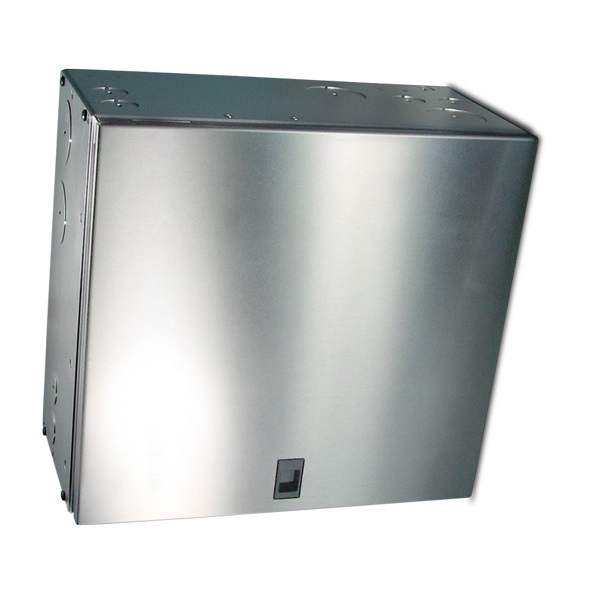

OutBack Power’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.
Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems.
The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.
Product No. I1453 Installed Components / Radian GSLC 175-230 Enclosure w/ Hinged Door Yes 175 A Breaker 2x Dual AC Inputs Yes GFDI Yes FLEXnet DC Yes PV Disconnets Yes 500 A DC Shunts Yes 230 VAC Bypass Yes Weight (lb/kg) Unit: 40 lb / 18.1 kg
Shipping: 45 lb / 20.4 kg
Recommended Radian Model GS7048E Installed Components all GSLC Models Maximum Input Voltage 600 A Maximum Input Current 500 A Operating Frequency Range 50/60 Hz to DC Dimensions H x W x D (in/cm) Unit: 17 x 16 x 8.5 / 43.2 x 40.6 x 21.6cm
Shipping: 23.25 x 20.5 x 13.5 / 59.1 x 52.1 x 33.7
Enclosure Type Indoor Type 1 (IP30) Certifications UL 1741, CSA 22.2, No. 107.1-01, RoHS Warranty Standard 5 Year
