Description
The simplicity and high performance of the Steca Solarix PRS solar charge controller make it particularly appealing. At the same time, it offers a modern design and a convenient display, all at an extremely attractive price.
Several LEDs in various colours emulate a tank display, which gives information on the battery‘s state of charge. Here, Steca’s latest al- gorithms are employed, resulting in optimal battery maintenance. The Solarix PRS charge controllers are equipped with an electronic fuse, thus making optimal protection possible. They operate on the serial principle, and separate the solar module from the battery in order to protect it against overcharging.
For larger projects, the charge controllers can also be equipped with special functions: e.g. with night light function and selec- table charging plateau and deep-discharge protection voltages.
Specification
Product No. R1038 Characterisation of the operating performance: System voltage 12 V (24 V) Own consumption < 4 mA DC input side: Open circuit voltage solar module < 47 V Module current 10 A DC output side: Load current 10 A Reconnection voltage (LVR) 12.4 V … 12.7 V (24.8 V … 25.4 V) Deep discharge protection (LVD) 11.2 V … 11.6 V (22.4 V … 23.2 V) Battery side: Battery voltage 9 V ... 17 V (17.1 V ... 34 V) End of charge voltage 13.9 V (27.8 V) Boost charge voltage 14.4 V (28.8 V) Equalisation charge 14.7 V (29.4 V) Set battery type liquid Operating conditions: Ambient temperature -25 °C … +50 °C Fitting and construction: Terminal (fine / single wire) 16 mm² / 25 mm² - AWG 6 / 4 Degree of protection IP 31 Dimensions (X x Y x Z) 187 x 96 x 45 mm Weight 345 g Technical data at 25 °C / 77 °F
adjustable via Steca PA RC100: reconnection voltage, deep discharge protection, end of charge voltage, boost charge voltage, equalisation charge, battery type
Inverters must not be connected to the load output. -

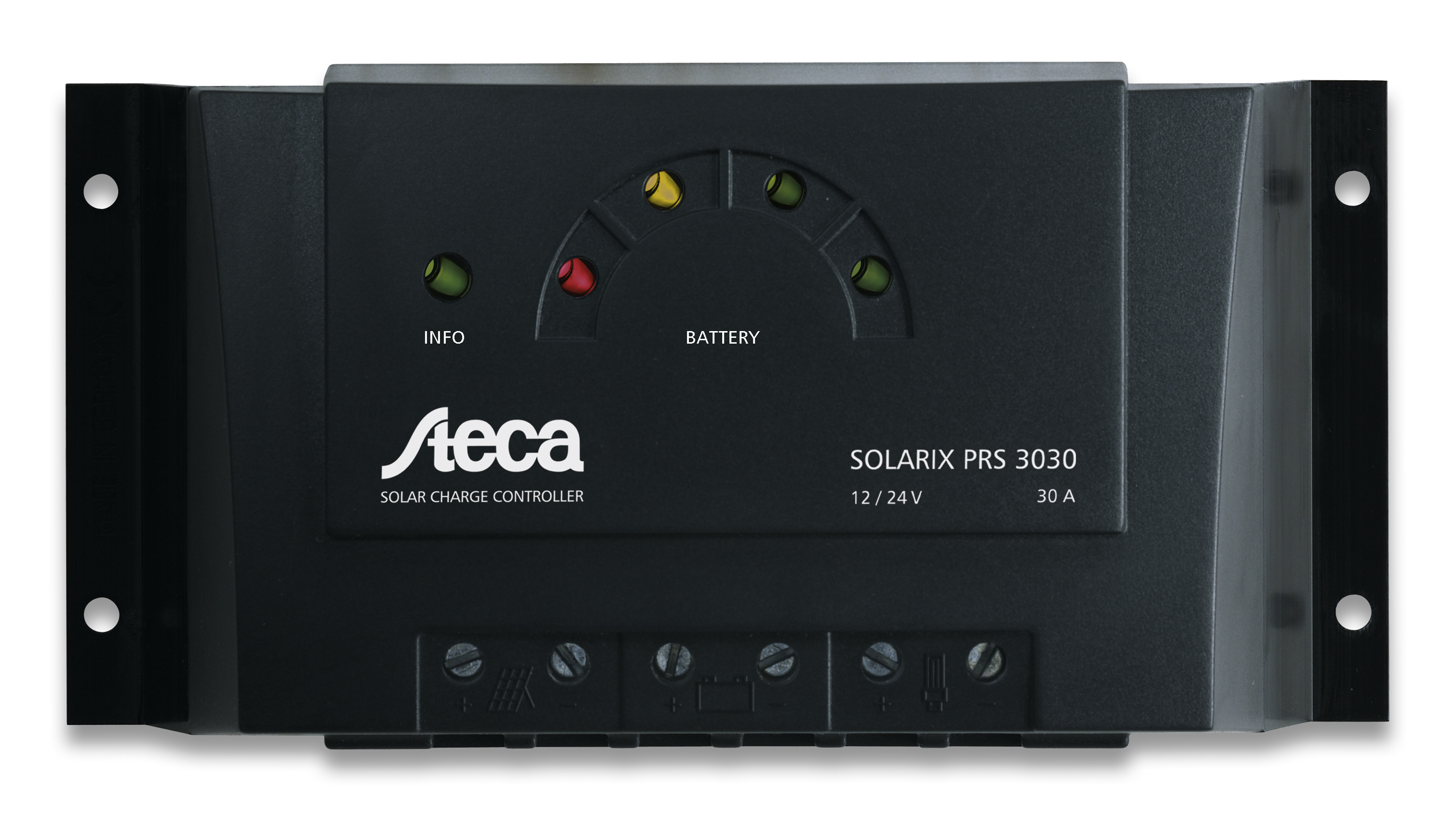

Product image
