Products Charge Controllers Power Tarom 4055
  • Description

    Specially designed for industrial and outdoor applications, the Steca Power Tarom comes with an IP 65 casing made of powder-coated steel.

    This solar charge controller is capable of regulating large systems at three voltage levels (12 V, 24 V, 48 V). The Steca Power Tarom is based on the technology of the Steca Tarom controller. When connected in parallel, several controllers from this series can be operated via a standard DC bus in a simple solar home system or a hybrid system.

    Specification

    Product No. R1012
    Characterisation of the operating performance:
    System voltage 48 V
    Own consumption 14 mA
    DC input side:
    Open circuit voltage solar module < 100 V
    Module current 55 A
    DC output side:
    Load current 55 A
    Reconnection voltage (SOC / LVR) > 50 % / 50.4 V
    Deep discharge protection (SOC / LVD) < 30 % / 44.4 V
    Battery side: < 30 % / 44.4 V
    End of charge voltage 54.8 V
    Boost charge voltage 57.6 V
    Equalisation charge 58.8 V
    Set battery type liquid (adjustable via menu)
    Operating conditions:
    Ambient temperature -10 °C … +60 °C
    Fitting and construction:
    Terminal (fine / single wire) 50 mm² - AWG 1
    Degree of protection IP 65
    Dimensions (X x Y x Z) 330 x 330 x 190 mm
    Weight 10 kg

    Technical data at 25 °C / 77 °F

    Inverters must not be connected to the load output.

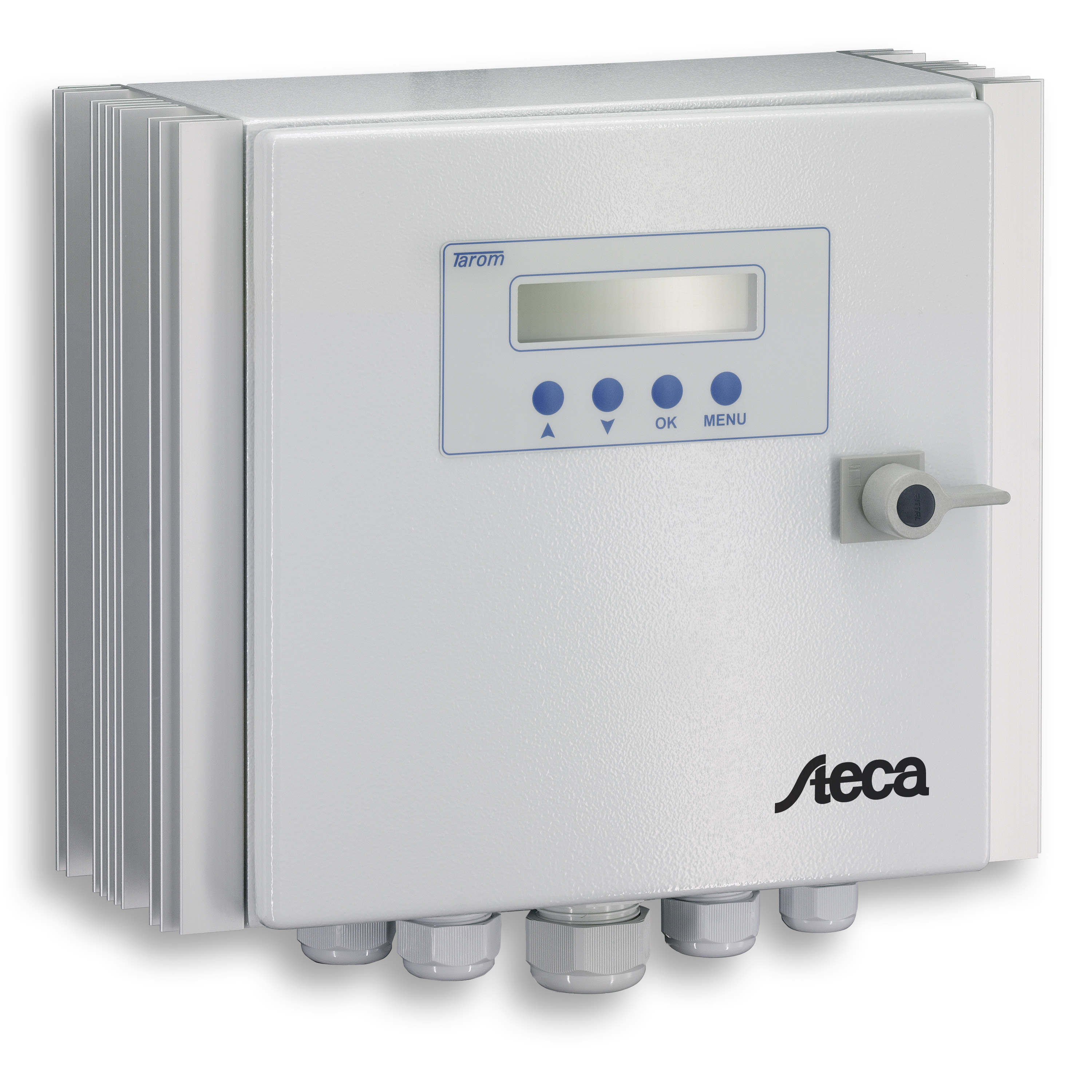

  • Product image

    Power Tarom 4450
    Power Tarom 4450

    Download

    Steca - Power Tarom 2070 2140 4055.pdf (257.5 KiB)
