Description
The Steca PLI-300 is a low-cost 300 W sine wave inverter for supplying small AC appliances. It has a manual on/off switch allowing the inverter to be switched off to reduce own consumption. The device is especially suitable for use in solar home systems where manually switched small AC appliances are occasionally used in addition to the normal DC appliances. The device is supplied with DC cables and has a European AC power socket.
Specification
Product No. I1201 Characterisation of the operating performance: System voltage 12 V Continuous power 300 VA Power 30 min. 300 VA Power 5 sec. 350 VA Power asymmetric 250 VA Max. efficiency 85 % Own consumption standby / ON 0.5 W / 9 W DC input side: Battery voltage 10.5 V … 15 V Reconnection voltage (LVR) 12.5 V Deep discharge protection (LVD) 10.5 V AC output side: Output voltage 230 V AC +/-10 % Output frequency 50 Hz Safety: Protection class II (double insulated) Electrical protection No reverse polarity protection for the battery, reverse polarity AC, over voltage, over current, over temperature Operating conditions: Ambient temperature -20 °C … +50 °C Fitting and construction: AC output side connection European plug Cable cross-section battery 4 mm2 (AWG 12) Degree of protection IP 20 Dimensions (X x Y x Z) 245 x 117 x 62 mm Weight 1.2 kg -

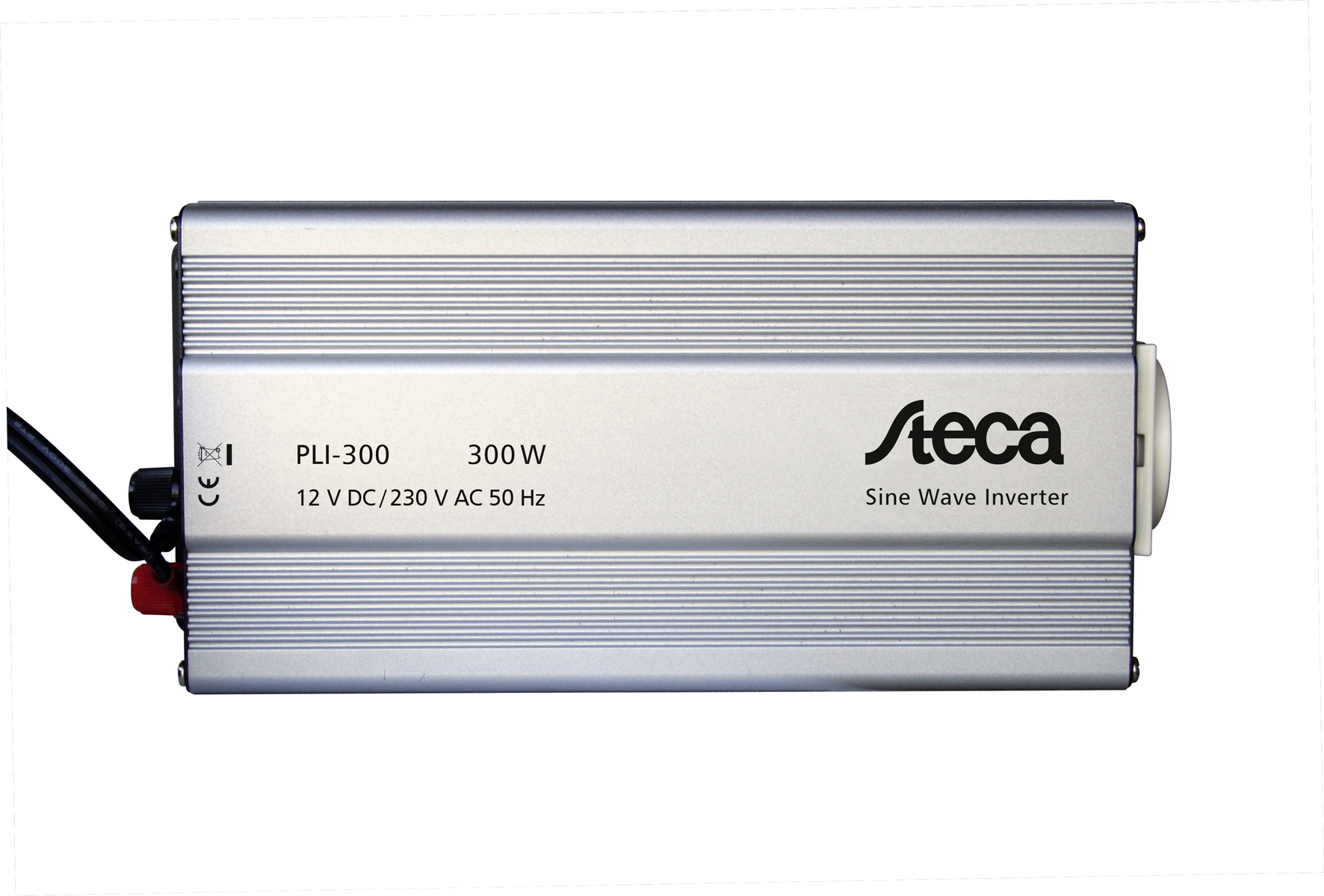

Product image
