Accessories Steca PAx4
  • Description

    Up to four Steca Solarix PI can be operated in parallel. The connections are made via an external box, the Steca PAx4.

    A further innovation that has gone into the Steca Solarix PI is the communication with the solar charge controller from the Steca Power Tarom series. A data connection to the charge controller can be created via the Steca PAx4.

    Specification

    Product No. I1205
    Operating conditions:
    Ambient temperature -20 °C ... +45 °C
    Relative humidity 0 % ... 95 %
    Fitting conditions:
    Cable data cable master: 0.5 m red
    data cable slave 1: 0.5 m grey
    data cable slave 2: 1m grey
    data cable slave 3: 1m grey
    data cable Steca Power Tarom: 3 m black
    Interfaces 6 x RJ45
    (4 x inverter, 2 x Steca Power Tarom)
    Degree of protection IP 20
    Dimensions (X x Y x Z) 206 x 117 x 64 mm
    Weight 800 g

    Technical data at 25 °C / 77 °F

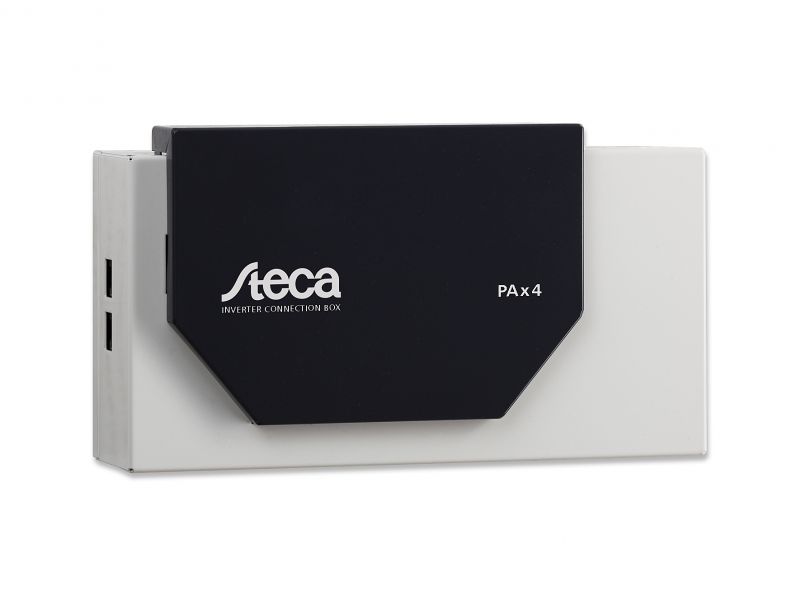

  • Product image

    Steca PAx4
    Steca PAx4

    Download

    Steca - PAx4.pdf (210.0 KiB)
