Accessories Steca PA HS200
  • Description

    The Steca PA HS200 is a highly intelligent current sensor with ex- tremely low own consumption.

    The Steca PA HS200 comes into play when (e.g.) an inverter is directly connected to the battery and the Steca Power Tarom charge controller cannot measure the current consumption. A shunt is also required when an additional generator (e.g. PV, wind or diesel) di- rectly charges the battery without being connected to a Steca Power Tarom charge controller. The current is measured contact-free via a Hall-effect sensor. The data is transmitted to the charge controller over a cable connection.

    Up to two Steca PA HS200 shunts can be connected and the measured currents can be selectively added to the charging current, battery current or load current as desired.

    Specification

    Product No. AS1008
    Product features:
    Robust metal casing
    Automatic detection of voltage
    Wide current measuring range
    Potential free current measurement
    Communicates and stores data in the Steca PA Tarcom
    Integrated Hall sensor
    Displays:
    1 or 3 LEDs indicate operating states (Steca PA HS200/400)
    Display via charge controller screen
    Interfaces:
    StecaLink Bus (only Steca PA HS400)
    Two RJ45 cable sockets
    Certificates:
    Compliant with European Standards (CE)
    Made in Germany
    Developed in Germany

    Characterisation of the operating performance:
    System voltage 10 V … 65 V
    Own consumption < 9 mA
    Measurement accuracy (-20 A … +20 A) +/-1 %
    (-200 A … +200 A) +/-3 %
    Measuring interval 60 s
    Operating conditions:
    Ambient temperature -15 °C … +50 °C
    Relative humidity 75 %
    Fitting and construction:
    Interfaces Power Tarom
    Current range “battery“ mode -200 A … +200 A
    Current range “charge“ mode 0 A … +200 A
    Current range “load“ mode -200 A … 0 A
    Degree of protection IP 22
    Dimensions (X x Y x Z) 103 x 60 x 24 mm
    Weight 120 g
    Max. diameter for battery cable 19 mm

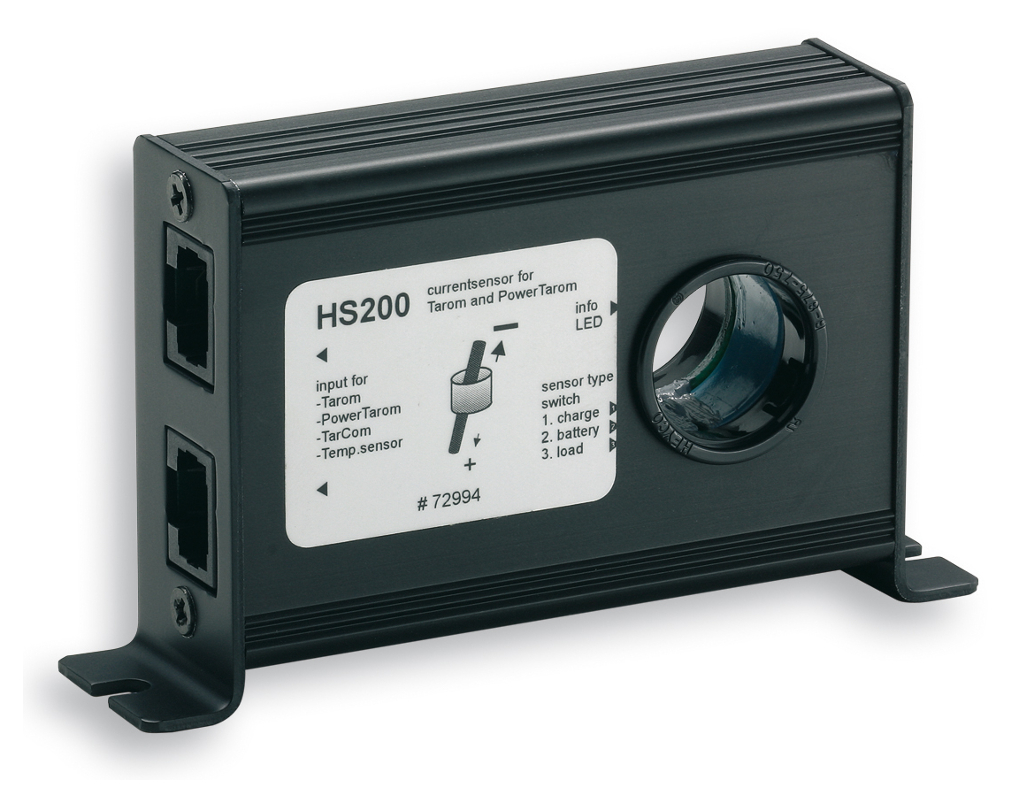

  • Product image

    Steca PA HS200
    Steca PA HS200

    Download

    Steca - PA HS200.pdf (277.8 KiB)
