Accessories Steca PA 15
  • Description

    Steca PA 15

    Accessories for Steca Power Tarom

    Remote control
    The Steca Power Tarom charge controllers send out sig- nals (125 kHz on 300 Baud) which are modulated on the DC cable and received by the Steca PA 15 remote control.

    These signals contain information on the batteries‘ state of charge (SOC). The Steca PA 15 features five different operating modes (see below) which can be set using five different jumper positions. The maximum switching capacity of 15 A can be increased with a Steca PA EV200 DC relay to up to 200 A if desired.

    Specification

    Product No. R1257
    Characterisation of the operating performance:
    Power supply 10.5 V … 60 V DC, 5 mA
    Data transmission 300 Baud
    Transmission frequency 125 kHz signal frequency,
    450 kHz intermediate frequency
    DC output side:
    Load current 15 A; 10 A at 40°C; 100 A pulse < 10 µs
    Safety:
    Overload protection by 15 A fuse
    Wrong polarity protection fuse
    Operating conditions:
    Ambient temperature -10 °C … +50 °C
    Fitting and construction:
    Terminal (fine / single wire) 2.5 mm² / 4 mm² - AWG 14 / 12
    Degree of protection IP 22
    Dimensions (X x Y x Z) 98 x 87 x 34 mm
    Weight 110 g

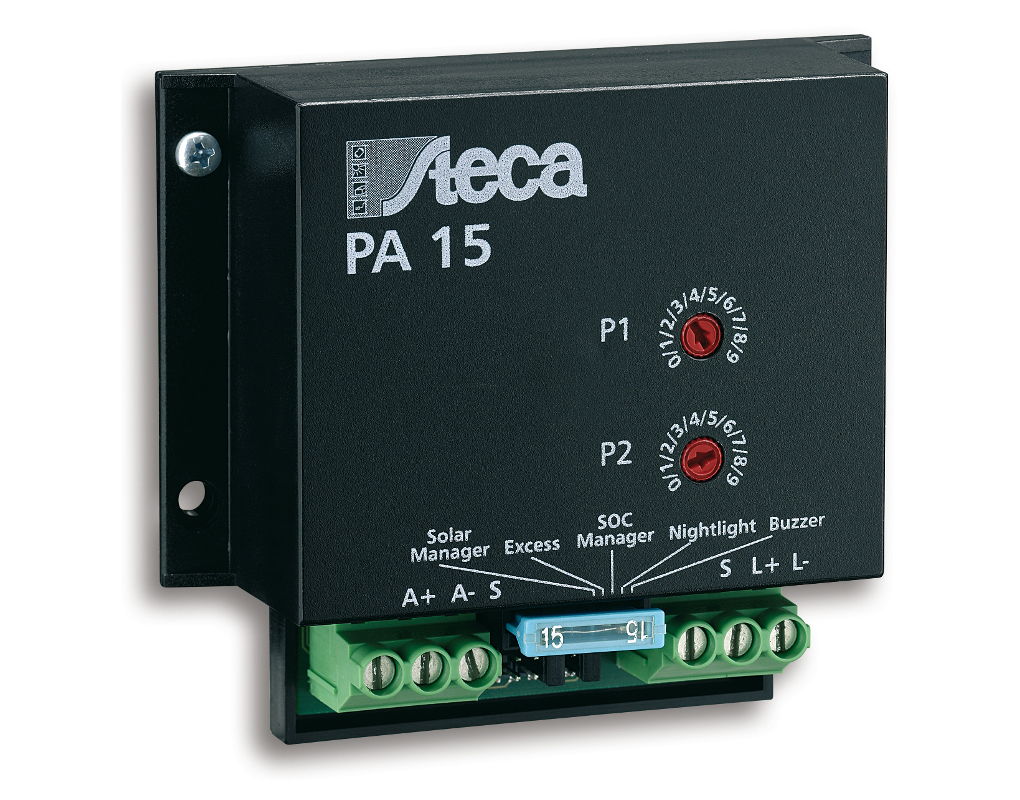

  • Product image

    Steca PA 15
    Steca PA 15

    Download

    Steca - PA 15.pdf (232.9 KiB)
