Accessories OutBack OBB-150VDC-PNL

  • Description

    Panel mounted hydraulic-magnetic type breakers that can be used for DC sources, inverters or load circuits.

    Front panel, single pole mount with stud terminals on the back. Ring terminals required.

    → DIN rail mountable
    → Hydraulic-magnetic type breakers
    → Can be used for input, output or load circuits
    → Contact OutBack for additional information

    Specification

    Mounting type PNL (panel mounted)
    Current Rating 20 Amp DC 1/4” stud terminals
    Current Rating 30 Amp DC 1/4” stud terminals
    Current Rating 30 Amp AC 1/4” stud terminals
    Current Rating 40 Amp DC 1/4” stud terminals
    Current Rating 50 Amp DC 1/4” stud terminals
    Current Rating 60 Amp DC 1/4” stud terminals
    Current Rating 80 Amp DC 1/4” stud terminals
    Current Rating 100 Amp DC 1/4” stud terminals
    Current Rating 125 Amp DC 5/16” stud terminals
    Current Rating 175 Amp DC 3/8” stud terminals
    Current Rating 250 Amp DC 3/8” stud terminals
    Voltage Rating 150VDC

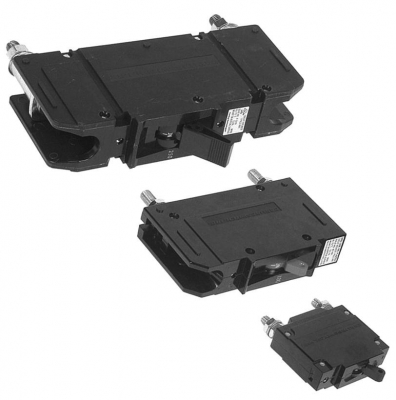

  • Product image

    OBB-150VDC-PNL
    OBB-150VDC-PNL
