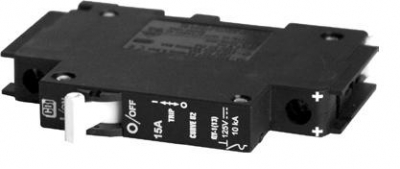

Accessories OutBack OBB-150VDC-DIN
  • Description

    DIN rail mount breakers are hydraulic-magnetic type and are not affected by high ambient temperatures.

    DIN rail mount with set-screw compression terminals. Mount 0.5" (13 mm) wide - #14 to 2 AWG (1.62 mm to 6.54 mm diameter) clamp terminals.

    → Rail mount breakers
    → Hydraulic-magnetic type
    → Not affected by high ambient temperatures.
    → Contact OutBack for Product Highlights

    Specification

    Mounting Type DIN rail mountable
    Current Rating 10 Amp DC
    Current Rating 20 Amp DC
    Current Rating 30 Amp DC
    Current Rating 40 Amp DC
    Current Rating 50 Amp DC
    Current Rating 60 Amp DC
    Voltage Rating* 150VDC
    Terminals #14 to 2 AWG clamp terminals (1.62 mm to 6.54 mm)
    Width 0.5" (13 mm)

    * Approved for maximum VOC of 15O VDC by ETL for PV array applications only.

  • Product image

    OBB-150VDC-DIN
    OBB-150VDC-DIN
