Accessories OutBack Mate 3s
  • Description

    → Program, Manage and Monitor Entire System
    → Intuitive Menu Structure
    → Easy-To-Read Graphical Display
    → System Configuration Wizard
    → Internet Enabled
    → Field Upgradable
    → Up to 1-Year of Data Logging
    → SD Memory Card Slot
    → Full remotely access through Internet

    The MATE3 System Display and Controller make it easier than ever to program and monitor a complete OutBack Power system. An intuitive user interface and integrated system configuration wizard make system setup and programming quick and seamless. The ability to set unique multi-level user passwords makes it possible to secure critical system settings from unintended changes while still allowing open access to necessary functions.

    Other features making system management simpler include an easy-to-read graphical backlit LCD display, improved tactile buttons, and user programmable “favorite” keys for immediate access to the most wanted features. An intuitive scroll wheel interface allows easy adjustment of system set points. Expandable SD card memory increases data logging capacity as well as making it easy to upgrade units in the field.

    A built-in clock and calendar function enables timer-based programming of inverter and charger operation. This setting allows the system to work with time-of-day power rates or to limit a generator’s run time to a specific time period of the day or week. All settings are stored in on-board memory to eliminate the need to reprogram in the event of a system shutdown or battery replacement. The MATE3 supports web-server access via an intranet to allow monitoring of an OutBack system.

    Specification

    Product No. I1019
    Display 4.0 x 1.2” full graphical display
    Quick System Access 5 system operation hot keys, 4 user programmable soft keys
    Status Indicators Nine LED Navigational Controls
    Navigational Controls 5 navigational keys
    Setpoint Adjustment Touch sensitive scroll wheel
    Communication Protocol Proprietary OutBack Communications Protocol
    Interconnection Cabling Included Standard CAT5 network cable with RJ45 modular jack - 6’ (2 m)
    PC Computer Interface HTML system status dashboard over local intranet connection
    Field Update Capability Yes (includes Radian inverters, FLEXmax Extreme charge controller [rev 3.0 or higher])
    Microprocessor 80 MHz 32 bit processor
    Set Point and Data Memory 8 Mb RAM/ 64 Mb of flash RAM
    Clock/Calendar On-board real time clock with battery backup
    Operating Temperature Range 0°C to 50°C
    Environmental Rating Indoor Type 1 (IP 30)
    Maximum Cable Length 300’ (100 m)
    Warranty Standard 5 year Warranty
    Weight Unit: 1.4 lbs / 0.64 kg
      Shipping: 3.0 lbs / 1.36 kg
    Dimensions H x W x D Unit: 7.1 x 7.5 x 1.6 in / 18 x 19 x 4.1 cm
      Shipping: 3.25 x 9 x 13.5 in / 8.26 x 22.9 x 34.3 cm

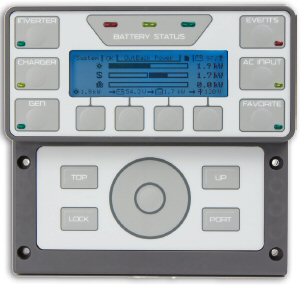

  • Product image

    Mate 3s
    Mate 3s

    Download

    Outback - Mate 3s.pdf (560.7 KiB)
