Products Solarmodules Luxor 440 Wp
  • Description

    ECO LINE HALF CELL: ESPECIALLY ECONOMIC AND RELIABLE

    → High module conversion efficiency up to 20,07% through innovative cell technology
    → Performance surplus of 0 Wp to 6,49 Wp
    → Robust aluminum frame ensures the modules to withstand 2400 Pa tensile load and 5400 Pa pressure load
    → High reliability against extreme environmental conditions
    → 100% PID free cells
    → Measurement tolerance depending on equipment: rated power +/- 3%, other values +/- 10%.

    WARRANTY CONDITIONS

    → 15 years product guarantee

    → 25 years linear performance guarantee



    Specification

    Product No. GT8-1005
    Cells Monocrystalline (144 cells)
    Nominal power 440 Wpeak
    Nominal voltage 41,31 V
    Nominal current 10,66 A
    Short circuit current 11,26 A
    Open circuit voltage 49,95 V
    Max. system voltage 1000 V or 1500 V
    Maximum Series Fuse Rating 15A
    Efficiency at STC (%) 20,07 %
    Fire Resistance Rating In accordance with IEC 61730
    Dimensions 2115 x 1052 x 40 mm
    Weight 24 kg
  • Product image

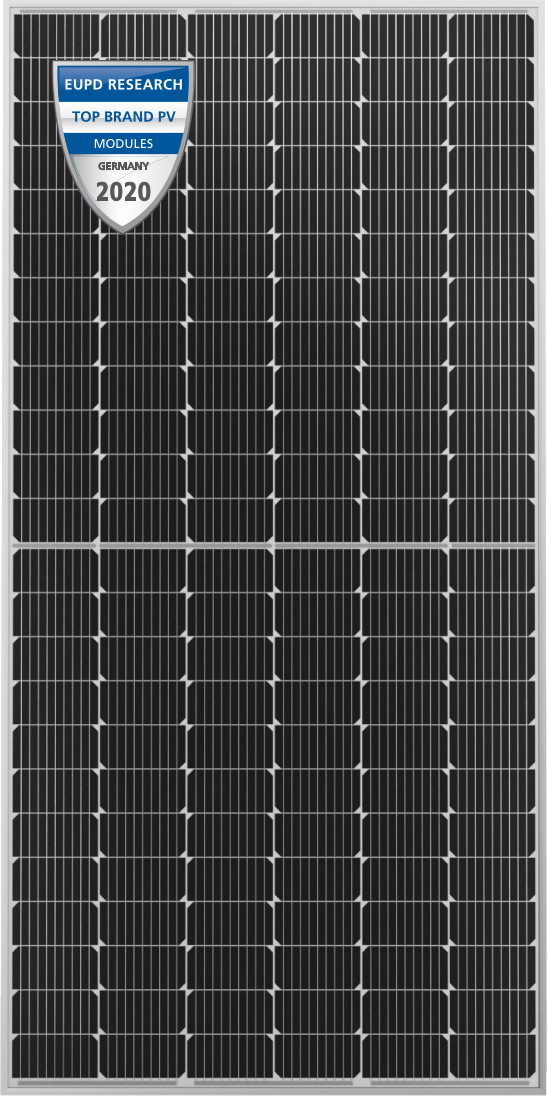

    Luxor 440Wp
    Luxor 440Wp

    Download

    Luxor - Datasheet 440Wp_en.pdf (503.3 KiB)
