Products Solarmodules Luxor 330Wp
  • Description

    ECO LINE: ESPECIALLY ECONOMIC AND RELIABLE

    → High module conversion efficiency up to 17,03% through innovative cell technology
    → Performance surplus of 0 Wp to 6,49 Wp
    → Robust aluminum frame ensures the modules to withstand 2400 Pa tensile load and 5400 Pa pressure load
    → High reliability against extreme environmental conditions
    → 100% PID free cells
    → Measurement tolerance depending on equipment: rated power +/- 3%, other values +/- 10%.

    WARRANTY CONDITIONS

    → 15 years product guarantee

    → 25 years linear performance guarantee



    Specification

    Product No. GT8-1003
    Cells Polycrystalline (72 cells)
    Nominal power 330 Wpeak
    Nominal voltage 37,66 V
    Nominal current 8,77 A
    Short circuit current 9,27 A
    Open circuit voltage 46,29 V
    Max. system voltage 1000 V or 1500 V
    Maximum Series Fuse Rating 15A
    Efficiency at STC (%) 17,03 %
    Fire Resistance Rating In accordance with IEC 61730
    Dimensions 1956 x 992 x 40 mm
    Weight 23,2 kg
  • Product image

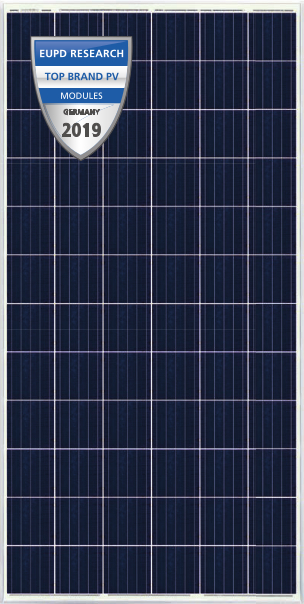

    Luxor 330Wp
    Luxor 330Wp

    Download

    Luxor - Datasheet 330Wp_en.pdf (600.7 KiB)
