Products Inverter/Charger GFX 1448E
  • Description

    The OutBack true sinewave GFX International Series Inverter/ Charger is a competitive power solution designed for applications with lower power demands. Incorporating a DCto- AC sinewave inverter, battery charger and AC transfer relay housed within a die-cast aluminum chassis, the International Series GFX Inverter/Chargers give you the ability to sell solar, wind or hydro power back to the utility grid while providing instantaneous back-up power in the event of a utility outage.

    Sealed True Sinewave Inverter/Charger

    • Grid-Interactive, Backup or Standalone Power
    • Sinewave Output
    • Intelligent Battery Charging with Generator Support
    • High Surge and Charger Ratings
    • Sealed Chassis For Harsh Environments
    • Field Serviceable
    • Standard 5-Year Warranty

    Specification

    Product No. I1435
    Nominal DC Input Voltage 48 Vdc
    Continuous Power Rating at 25°C (77°F) 1400 VA
    AC Voltage/Frequency 230 Vac / 50 Hz
    Continuous AC RMS Output at 25°C (77°F) 6,09 Aac
    Idle Power Full: ~ 18 Watts
      Search: ~ 6 Watts
    Typical Efficiency 93%
    Total Harmonic Distortion Typical: 2%
      Maximum: 5%
    Output Voltage Regulation ± 2%
    Maximum Output Current Peak (1 ms): 28 Aac
      RMS (100 ms): 20 Aac
    AC Overload Capability Surge (100 ms): 4600 VA
      5 Second: 2900 VA
      30 Minutes: 2000 VA
    AC Input Current Maximum 30 Aac
    AC Input Voltage Range (Adjustable) 140 to 280 Vac
    AC Input Frequency Range 45 to 55 Hz
    DC Input Voltage Range 42,0 to 68,0 Vdc
    Continuous Battery Charge Output 20 Adc
    Max DC Current at Rated Power 35 Adc
    Warranty Standard 5 year Warranty
    Weight (kg/lbs) Unit: 22,5 / 49,6
      Shipping: 25,6 / 56,4
    Dimensions H x W x L (cm/in) Unit: 33 x 21 x 41 / 13 x 8,25 x 16,25
      Shipping: 55 x 33 x 56 / 21,75 x 13 x 22

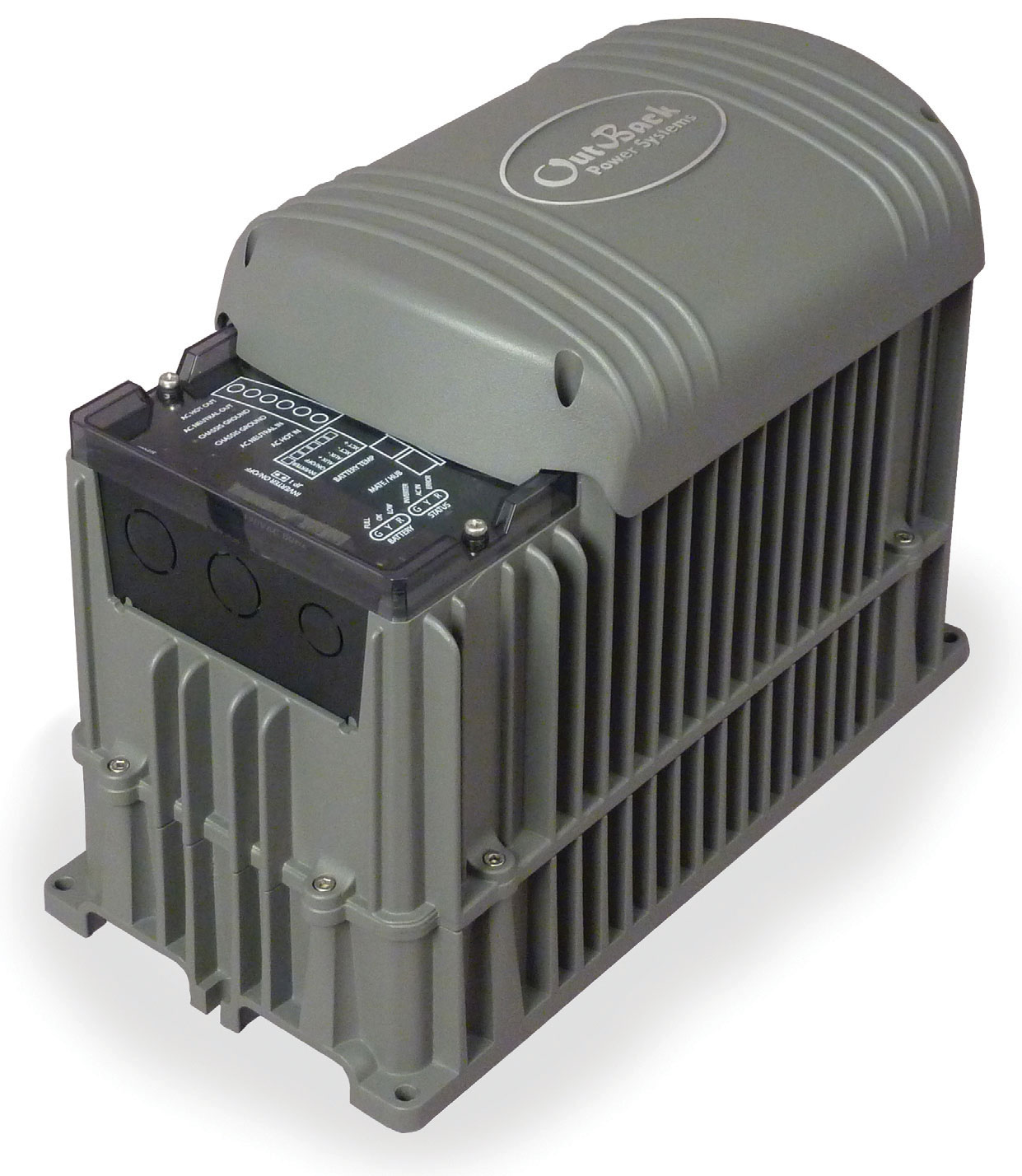

  • Product image

    GFX 1448E
    GFX 1448E

    Download

    Outback - GFX Series.pdf (580.6 KiB)
