Products Inverter/Charger FXR 2012E

  • Description

    Sealed True Sinewave Inverter/Charger

    FXR inverter/chargers can be paired with a MATE3 to add OPTICS RE to monitor and control system performance from any location. Available in power ranges from 2000W-3000W, multiple units may be stacked and connected with other OutBack Power electronics for more seamless system integration and the ability to function in a wide variety of applications, and system sizes. Up to nine inverters can be combined in a 3-phase system with the 12V, 24V or 48V models.

    Available in sealed or vented units with NEMA type 1 die-cast aluminum chassis designed to operate in the harshest environmental conditions such as high temperatures, humidity or corrosive salt air, the FXR’s continue in OutBack’s tradition of absolute dependability in mission critical installations no matter how harsh or challenging the conditions.

    Specification

    Product No. I1022
    Continuous Power Rating @ 25° C 2000 VA
    AC Output Voltage (Selectable) 230 VAC (200-260 VAC)
    AC Output Frequency (Selectable) 50Hz (60Hz)
    Nominal DC Input Voltage 12 VDC
    Continuous AC RMS Output @ 25° C 8.7 AAC
    Idle Power Full: ~ 34 W
    Search: ~ 9 W
    Off: ~ 3 W
    Typical Efficiency 90%
    CEC Weighted Efficiency N/A
    Total Harmonic Distortion Typical: < 2%
    Maximum: < 5%
    Output Voltage Regulation ± 2.5%
    Maximum Output Current Peak: 28 AAC
    RMS: 20 AAC
    AC Overload Capability Surge: 4600 VA
    5 sec: 4300 VA
    30 min: 2500 VA
    AC Input Voltage Range (MATE Adjustable) 170 bis 290 VAC
    AC Input Frequency Range 45 to 55 Hz (54 to 66Hz)
    AC Input Tare Loss 0 VA
    Grid-Interactive Voltage Range N/A
    Grid-Interactive Frequency Range N/A
    AC Input Current Maximum 30 AAC
    Continuous Battery Charge Output 100 ADC
    Maximum Battery Charging (AC/DC/Power) 7 AAC / 100 ADC / 1360 VA
    DC Input Voltage Range 10.5 to 17 VDC
    Warranty Standard 5 year / Optional 10 year
    Weight (lb/kg) Unit: 62 lbs / 29 kg
    Shipping: 67 lbs / 30 kg
    Dimensions H x W x L (in/cm) Unit: 13 x 8.25 x 16.25” / 33 x 21 x 41 cm
    Shipping: 21.75 x 13 x 22 / 55 x 33 x 56
    Temperature range Rated: -20 to 50°C
    Operating: -40 to 60°C
    Storage: -40 to 60°C
    Relative Humidity rating 93 %
    Listings/certifications IEC62109-1, CE
    RoHS Compliance Yes

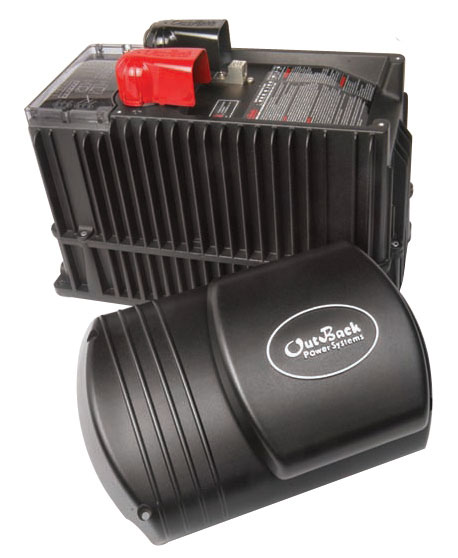

  • Product image

    FXR 2012E
    FXR 2012E

    Download

    Outback - FXR Series.pdf (514.8 KiB)
