Description
The FLEXware Surge Protector was designed by OutBack engineers specifically for OutBack FX Series Inverter/Chargers, and provides multiple levels of protection for the vital electrical components of the Inverter/Charger in the event of an electrical surge or nearby lightning strike.
The sophisticated design allows for both AC and DC protection on multiple circuits (two AC and one DC) via thermally fused Metal Oxide Varistors (MOVs). LED visual indicators provide at-a-glance status monitoring allowing system users to determine FLEXware Surge Protector operational status in real-time. The FLEXware Surge Protector is designed to operate between 120-240 VAC at 50/60 Hz and 12-48 VDC. Its multiple mounting configurations allow it to be incorporated into any OutBack system. The FW-SP-ACA mounts inside the FW-ACA (AC Conduit Adapter) for FLEXware 500 and 1000 systems, while the FW-SP-250 is designed to mount inside the FLEXware 250 AC Side Breaker Enclosure allowing for quick installations that keep your system protected and looking great.
Specification
Product No. I1343 Nominal Voltage 120-240VAC/12-48VDC Voltage Protection Level 390VAC/150VDC AC or DC AC/DC Maximum Surge Current (8/20 μs) 30kA per circuit Energy Rating 2500 joules Frequency 50/60 Hz Protection Type Thermally Fused MOV Number of Protected Circuits 2 AC/1 DC Mounting FW-ACA Weight Unit 1 lbs 4 oz (.57 kg) Weight Shipping 2 lbs 2 oz (.96 kg) Dimensions (H x W x L) Unit 8.5 x 6.75 x 2.5” (21.59 x 17.15 x 6.35 cm) Dimensions (H x W x L) Shipping 10.13 x 9.13 x 5.75” (25.72 x 23.2 x 14.6 cm) -

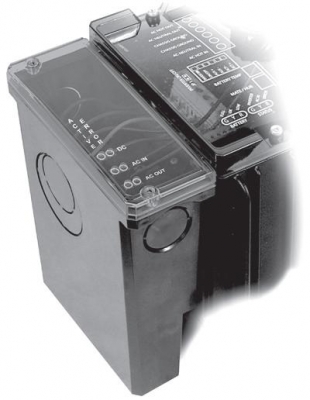

Product image
FW-SP-ACA Download
