Accessories OutBack FW-IOB-D-230VAC
  • Description

    Field-installable kit for bypassing the AC input to the AC output for inverter maintenance or installation. Also provides over-current protection.

    Specification

    Product No. I1331

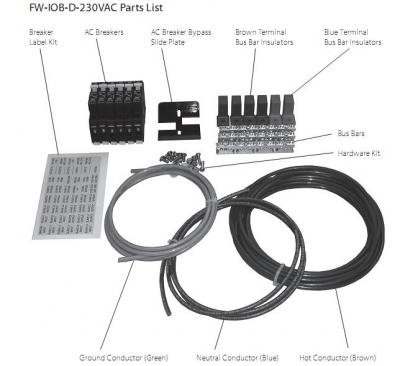

    Includes: Six 30A 230VAC single pole DIN mount breakers, sliding bypass interlock plate, wire and hardware kit
    System Rating Single-Phase 230VAC 60A 13.8kW
    Bypass Breaker Two Poles @ 30A 13.8kW
    Input Breaker Two Poles @ 30A 13.8kW
    Output Breaker Two Poles @ 30A 13.8kW
  • Product image

    FW-IOB-D-230VAC
    FW-IOB-D-230VAC
