Description
The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power Technologies.
The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).
Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax Series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.Specification
Product No. R1036 Nominal Battery Voltages 12, 24, 36, 48, or 60VDC (Single model - selectable via field programming at start-up) Maximum Output Current 80A @ 104°F (40°C) with adjustable current limit NEC Recommended Solar Array STC Nameplate 12VDC systems 1000W / 24VDC systems 2000W 48VDC systems 4000W / 60VDC Systems 5000W PV Open Circuit Voltage (VOC) 150VDC absolute maximum coldest conditions / 145VDC start-up and operating maximum Standby Power Consumption Less than 1W typical Power Conversion Efficiency 97.5% @ 80A in a 48VDC System - Typical Charging Regulation Five Stages: Bulk, Absorption, Float, Silent and Equalization Voltage Regulation Set points 10 to 60VDC user adjustable with password protection Equalization Charging Programmable Voltage Setpoint and Duration - Automatic Termination when completed Battery Temperature Compensation Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell Voltage Step-Down Capability Can charge a lower voltage battery from a higher voltage PV array - max 150VDC input Programmable Auxiliary Control Output 12VDC output signal which can be programmed for different control applications (maximum of 0.2 amps DC) Status Display 3.1” (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total Remote Display and Controller Optional MATE3, MATE or MATE2 with RS232 Serial Communications Port Network Cabling Proprietary network system using RJ 45 Modular Connectors with CAT5 Cable (8 wires) Data Logging Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float, Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production Hydro Turbine Applications Consult factory for approved turbines Positive Ground Application Requires dual pole breakers for switching both positive and negative conductors on both solar array and battery connections Operating Temperature Range -40°C to 60°C (power automatically derated above 40°C) Environmental Rating Indoor Type 1 Conduit Knockouts One 1” (35mm) on the back; One1” (35mm) on the left side; Two 1” (35mm) on the bottom Warranty Standard 5 year / Available 10 year Weight Unit: 12.20 lbs (5.56 kg) Shipping: 15.5 lbs (7.03 kg) Dimensions Unit: (H x W x DUnit16.25 x 5.75 x 4.5” (41.3 x 14.6 x 11.4 cm) Shipping: 21 x 10.5 x 10.5” (53 x 27 x 27 cm) Options Remote Temperature Sensor (RTS), HUB4, HUB10, MATE, MATE 2, MATE3 Menu Languages English & Spanish Certifications ETL Listed to UL1741, CSA C22.2 No. 107.1 -

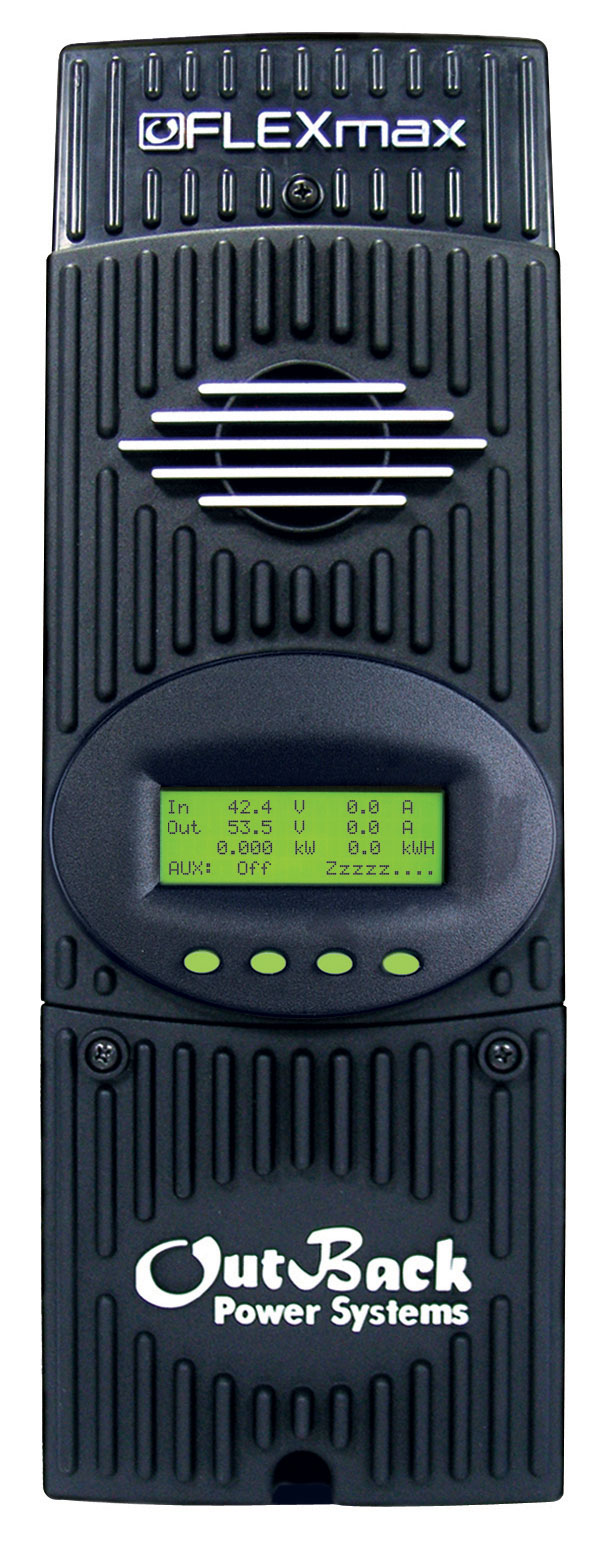

Product image
