Pure sine wave curve
The converted sine wave curve is pure and delivers the same output quality as fixed 230V/50Hz mains, ensuring a trouble–free connection of all 230 volt appliances.
Inverters designed to supply 2-3 times more power
At Clayton Power we know the importance of a stable and continuous power supply, yet most machines and devices use significantly more power in start up than at any other point in operation. Therefore, our inverters are designed to supply 2-3 times more power for shorter periods of high–peak consumption.
Full output from -20°C to +50°C
The design of the inverters is compact, low-weight, and advanced switch-mode technology allows the sine wave inverters to power a full output on a temperature scale from -20°C to +50°C (-4°F to +122°F). This ensures a stable power supply unaffected by the environment.
Manufactured in Europe
All our G3 Sine Wave Inverters are manufactured and tested in Europe.

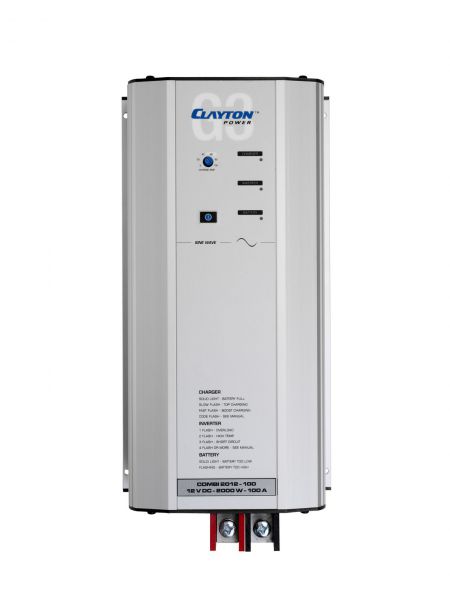

Product No. I2003 Power rating: Model 2012 Continuous output power 2000 W Output power surge (1 sec) 4000 W Output power surge (10 sec) 2800 W Output power surge (15 sec) 2200 W Max efficiency 90 % Self Power Consumption No load 15 W Load search mode < 3W Sleep mode < 8 mA Thermal Management: Max operating temperature 50 °C Min operating temperature -20 °C Max internal temperature 80 °C Voltage out: Nominal output voltage 230 VAC Output voltage tolerance -10 % , +5 % Frequency 50 Hz Waveform Sine THD Max. 3 % DC Voltage: Battery input voltage 12 VDC Max battery input voltage (nominal) 15 VDC Low battery cutoff (slow reaction 3 sec) 10.5 VDC Low battery cutoff (fast reaction 9 VDC Voltage before inverter can switch on again after low battery cutoff 12.75 VDC Mechanical: Weight 9.5 kg Dimensions in mm (W x L x H) 198 x 414 x 118 mm Package dimensions in mm (W x L x H) 275 x 535 x 260 mm Package weight 10.5 kg
