Products Inverter Off Grid AJ 2100-12
  • Description

    A well-performing range of inverters from 275VA to 2400VA for small to medium sized systems, with an optional built-in PWM solar charge controller. The devices in this series offer low self-consumption, a battery protection algorithm, and compact construction.

    Plug and forget
    The inverters of the AJ series have been present in the market for many years and have widely demonstrated their superior reliability. Being delivered with AC and DC cables, they are truly "plug and forget" devices.

    Self-consumption
    In addition to a high surge power capacity, the AJ have a very low self-consumption thanks to a precise and efficient stand-by function. The load detection in stand-by is automatic and adjustable from very small loads.

    Battery protection
    The inverters offer a battery protection function that intelligently manages the low voltage disconnect level as a function of how the battery is being used. The so-called B.L.O (Battery Lifetime Optimizer) protects the battery from repeated deep discharges, thus significantly prolonging the useful life of the battery.

    Specification

    Product No. I1109
    Inverter:
    Nominal battery voltage 12Vdc
    Input voltage range 10.5 – 16Vdc (20Vdc max.)
    Continuous power @ 25°C 2000VA
    Power 30 min. @ 25°C 2100VA
    Power 5 min. @ 25°C 2450VA
    Power 5 sec. @ 25°C 5000VA
    Maximum asymmetric load 1000VA
    Max. efficiency (%) 92% @ 300VA
    Cos φ max. 0.1 – 1 up to 2000VA
    Detection of the load Adjustable : 1 g 20W
    Current of short-circuit 2 sec. (exit) 26Aac (52Aac*)
    Output voltage Sine wave 230Vac (120Vac*) ±5%
    Frequency 50 Hz (60Hz*) ± 0.05% (crystal controlled)
    Distortion THD (resistive load) < 5% (@ Pnom. & Uin nom.)
    Consumption Stand-by 0.7W
    Consumption « ON » no load 16W
    Overheat protection (±5°C) Shut down @ 75°C - Auto-restart @ 70°C
    Short circuit protection Automatic disconnection with 2 time restart attempt
    Reverse polarity protection Not protected
    Deep discharge battery protection Shut off @ 0.87 x Unom - Automatic restart @ Unom
    Max. battery voltage Shut off @ >1.33 x Unom - Automatic restart @ < Umax
    Acoustic alarm Before low battery or overheating disconnection
    General data:
    Weight 19 kg
    Dimensions hxwxl [mm] 273x399x117
    Protection index IP IP 20 conforms to DIN 40050
    Certification ECE-R 10 (E24) ✓
    EC conformity EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 60950-1
    Operating temperature -20°C up to +50°C
    Relative humidity in operation 95% without condensation
    Ventilation forced From 45°C ± 5°C
    Acoustic level < 45 dB (with ventilation)
    Warranty 5 years
    Approximate correction of Pnom -1.5%/°C since +25°C
    Recommended battery capacity > 5 x Pnom/Unom (recommended value in Ah)
    Length cables (Battery/left AC) 1.7m / 1m
    Options AJ 2100-12-S
    Solar regulator:
    Voltage max. 25Vdc
    Current max. 30A
    Principle Floating 3 stages (I/U/UO)
    Absorption voltage 14.4Vdc
    Floating voltage 13.6Vdc
    Remote control JT8 supplied with 5 m cable ✓

    * 120Vac/60Hz on request
    ** Standby with solar option -S

  • Product image

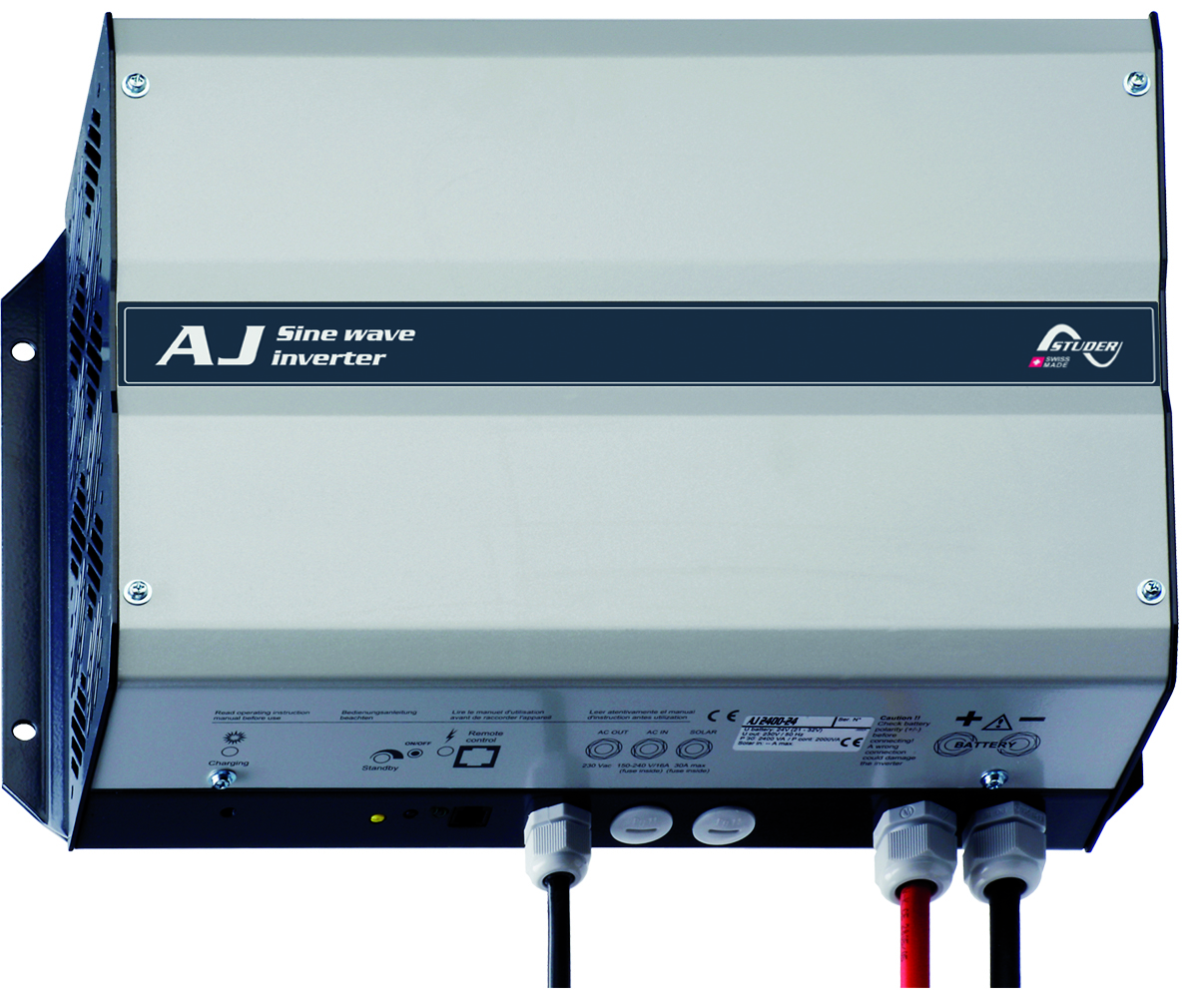

    AJ 2100-12
    AJ 2100-12

    Download

    Studer - AJ Series.pdf (303.2 KiB)
