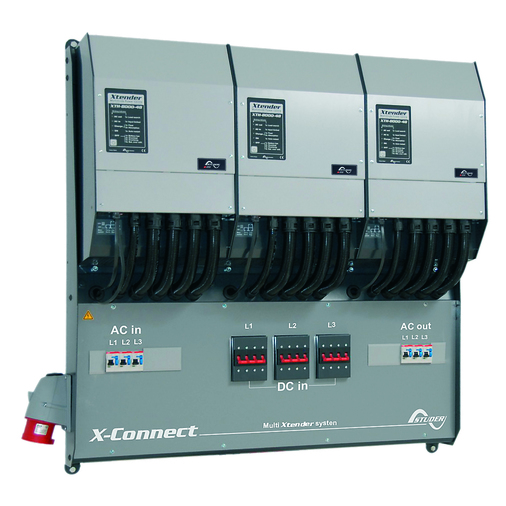

Pre-wired mounting frame for Studer Xtender series

The pre-wired mounting offers a flexible and cost effective solution for high power systems (up to 63 kVA) based on the XTH inverter/charger.

The frame is supplied with :
→ Pre-installed DC circuit breakers.
→ Pre-installed DC fuses.
→ Pre-installed DIN rails.
→ Interconnection pipes and gland for auxiliary contact wiring.
→ Interconnection pipes and gland for AC wiring.
→ Interconnection pipes and gland + 90 mm2 wire terminated with appropriates ring tongues for DC wiring from Xtender to breakers and fuses.

Technische Daten

With screws set for frame assembly.
