Descripción
The OutBack FLEXnet DC is the ultimate DC System monitoring device. Integrated networked communications capability makes valuable, usable data available from a system viewable on an OutBack MATE communications device, providing information on system health, performance and efficiency. FLEXnet DC provides real state-of-charge (S.O.C.) information about the life and state of a battery bank.
Especificaciones técnicas
Product No. I1321 Battery Voltage Input Range 8.0 to 80.0VDC Battery Voltage Resolution 0.1VDC Number of Current Channels One to Three (each can be a Source or Load) Current Range (each channel) -1000.0 amps to +1000.0 amps DC Current Resolution 0.1 amps DC State of Charge Display 0 to 100% (1% increments) Aux Relay Configuration SPST, Magnetic Latching Relay Aux Relay Max Rating 5A @ 30VDC Current Shunt Type (order separately) 500A / 50mV Display: → Primary MATE, MATE2 or MATE3 → Secondary Five LED Indicators on front of FLEXnet DC Battery AH Capacity Range 100 to 10,000 Amp Hours Data Logging Memory Most recent 128 Days Programmable AUX Relay Settings: → Battery Volts Adjustable from 8.0 to 80.0VDC → State of Charge Adjustable from 0 to 100% → Time Delay Adjustable from 0 to 240 Minutes Accuracy 0.5% of Reading +/- 2 LSDs per channel Operating Temperature Range 0°C to 50oC (32o to 122oF) Mounting 3/4” Panel Mount Breaker Slot or Surface Mount using Built-in Mounting Bars Warranty Standard 5 year Weight: → Unit 5 oz. (0.14 kg) → Shipping 2 lbs. (0.91 kg) Dimensions (H x W x L): → Unit 0.7 x 3.7 x 6.6” (1.9 x 16.8 cm) → Shipping 2.1 x 9.0 x 11.5” (5.4 x 22.9 x 29.2 cm) -

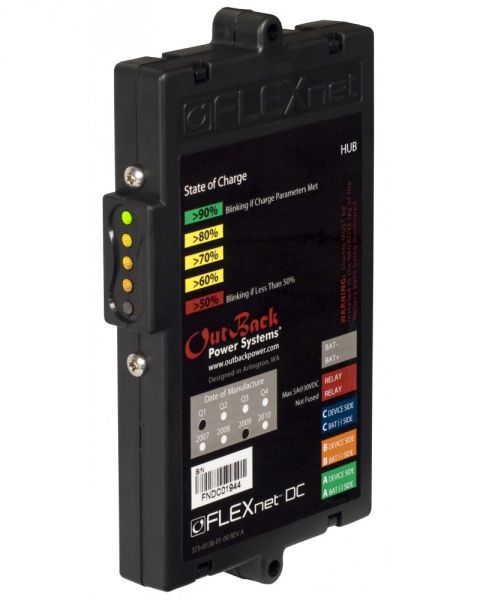

Imagen del producto
FLEXnet DC
