Description
The Xtender series is comprised of three groups by power level corresponding to the XTS, XTM and XTH models. Whether configured individually, in parallel, split-phase, or three-phase, these devices allow for complete flexibility with respect to the desired energy system concept.
With its sophisticated software, the Xtender can be used in a wide range of applications. The Xtender series products are ideal devices for specific markets that need revolutionary solutions with all types of battery technologies.
Ease of use
The Xtender fulfils the requirements of the majority of applications with its factory settings, which makes it a plug & play device. Energy flows automatically and the auxiliary contacts are configured to provide genset auto-start and alarm functions.The LEDs on the Xtender front panel allow the user to see in a quick glance how the device is working.
5 in 1
The Xtender is a true energy manager, unique and compact, that has 5 main functions. It can be an off-grid inverter, battery charger, current injector, transfer system and provide support to an AC source. With these functions, the available energy can be managed and used in an intelligent and efficient manner.Specification
Product No. I1009 Inverter: Nominal battery voltage 48Vdc Input voltage range 38 - 68Vdc Continuous power @ 25°C 900**/750VA Power 30 min. @ 25°C 1400**/1200VA Power 5 sec. @ 25°C 2.8kVA Maximum load Up to short-circuit Maximum asymmetric load Up to Pcont. Load detection (stand-by) 2 to 25 W Cos j 0.1-1 Maximum efficiency 93% Consumption OFF/Stand-by/ON 1.3W/1.6W/8W Output voltage Pure sine wave 230Vac (+/- 2%) / 120Vac (1) Output frequency 50Hz / 60Hz (1) +/- 0.05% (crystal controlled) Harmonic distortion <2% Overload and short-circuit protection Automatic disconnection with 3 time restart attempt Overheat protection Warning before shut-off - with automatic restart Battery charger: Charge Characteristic 6 steps : Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption
Number of steps, thresholds, end current and times completely adjustable with the RCC-02/-03Maximum charging current 12A Temperature compensation With BTS-01 or BSP 500/1200 Power Factor Correction (PFC) EN 61000-3-2 General data XTS 1400-48 Input voltage range 150 to 265Vac / 50 to 140Vac (1) Input frequency 45 to 65Hz Input current max. (transfer relay) / Output current max. 16Aac/20Aac Transfer time <15ms Multifunction contacts Module ARM-02 with 2 contacts, in option Weight 9.3 kg Dimension hxwxl [mm] 110x210x310 Protection index IP54 Conformity Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, 62040-2
Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1Operating temperature range -20 à 55°C Relative humidity in operation 100% Ventilation Optional cooling module ECF-01 Acoustic level <40dB / <45dB (without/with ventilation) Warranty 5 years Accessoires: Remote control RCC-02 or RCC-03 ✓ Module XCOM-232i ✓ Bridge XCOM-MS ✓ Remote Control Module RCM-10 (3 m) ✓ 2 aux. contacts module ARM-02 ✓ Cooling Module ECF-01 ✓ Battery temp. sensor BTS-01 (3 m) ✓ Communication cable for 3ph and // CAB-RJ45-8-2 ✓ Mounting frame X-Connect * Adjustable with the RCC-02/-03
** These features are valid only when using the cooling module ECF-01.
(1) With -01 at the end of the reference, means 120V/60Hz. Available for all Xtenders except XTH 8000-48 -
Productimage

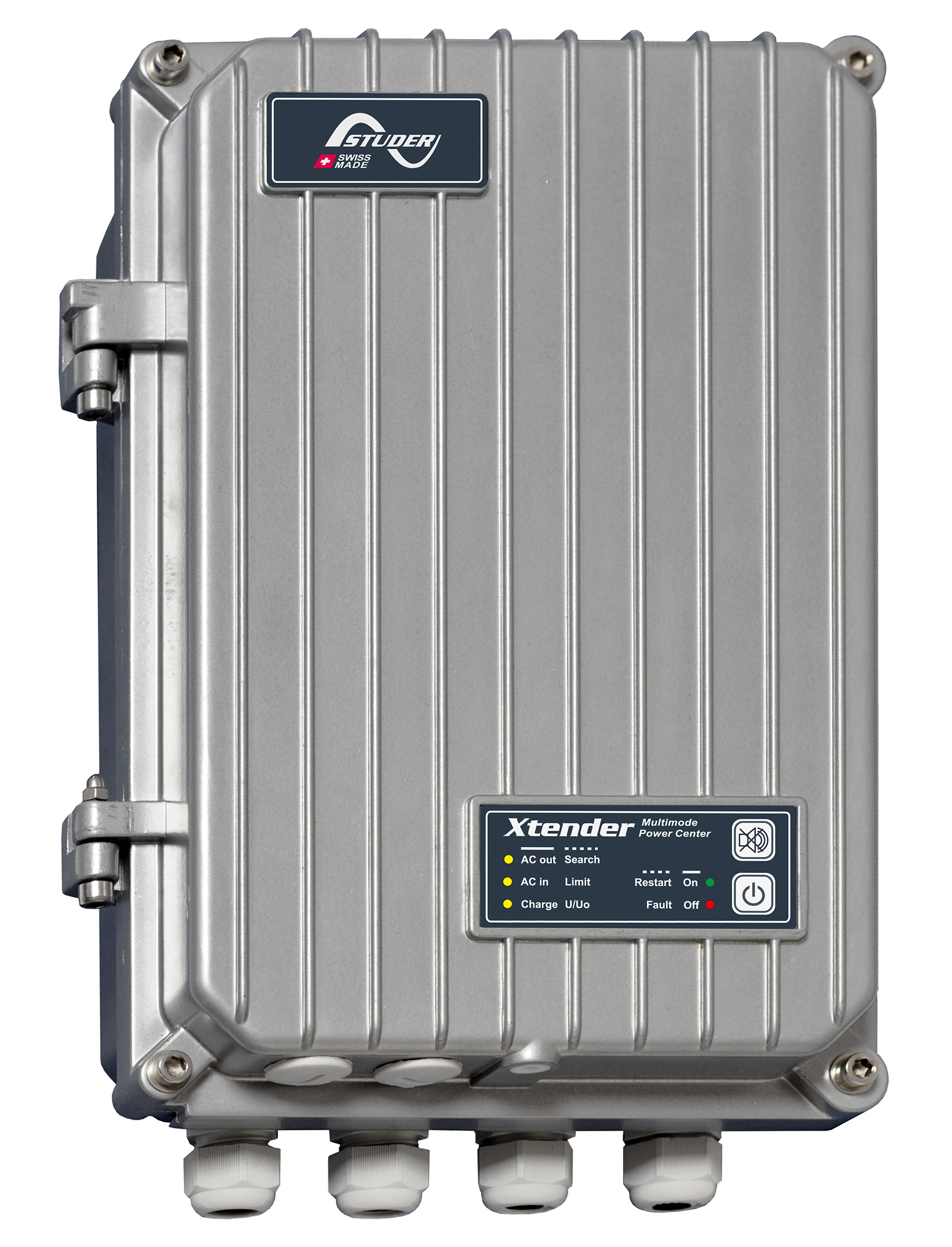

XTS 1400-48 Download
