Description
Vented True Sinewave Inverter/Charger
FXR inverter/chargers can be paired with a MATE3 to add OPTICS RE to monitor and control system performance from any location. Available in power ranges from 2000W-3000W, multiple units may be stacked and connected with other OutBack Power electronics for more seamless system integration and the ability to function in a wide variety of applications, and system sizes. Up to nine inverters can be combined in a 3-phase system with the 12V, 24V or 48V models.
Available in sealed or vented units with NEMA type 1 die-cast aluminum chassis designed to operate in the harshest environmental conditions such as high temperatures, humidity or corrosive salt air, the FXR’s continue in OutBack’s tradition of absolute dependability in mission critical installations no matter how harsh or challenging the conditions.
Specification
Product No. I1013 Nominal DC Input Voltage 48 VDC Continuous Power Rating at 25° C (77° F) 3000 VA AC Voltage/Frequency 230 VAC / 50 Hz Continuous AC RMS Output at 25° C (77° F) 13 amps AC Idle Power Full: ~ 23 Watts Search: ~ 6 Watts Typical Efficiency 93% Total Harmonic Distortion Typical: 2% Maximum: 5% Output Voltage Regulation ± 2% Maximum Output Current Peak: 35 amps AC RMS: 25 amps AC AC Overload Capability Surge: 5750 VA 5 Second: 4800 VA 30 Minutes: 3300 VA AC Input Current Maximum 30 amps AC AC Input Voltage Range (MATE Adjustable) 160 bis 300 VAC AC Input Frequency Range 44 bis 56 Hz DC Input Voltage Range 42 bis 68 VDC Continuous Battery Charge Output 45 amps DC Temperature Range Rated: 0 bis 50°C (power derated above 25°C) Maximum: -25°C bis 60°C (Functions, but does not necessarily meet all component specifications) Warranty Standard 5 year Warranty Weight Unit: 28 kg (61lb) Shipping: 31 kg (67lb) Dimensions (H x W x L) Unit: 33 x 21 x 41 cm (12 x 8,25 x 16,25 ”) Shipping: 55 x 33 x 56 cm (21,75 x 13 x 22 ”) -

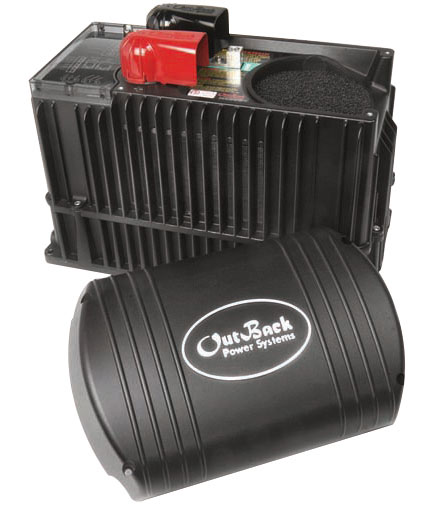

Product image
VFX 3048E Download
